OLS-150HYG - Series 150 - 1206 Standard green 572 nm

Key Features

  • size 1206: 3,2(L) x 1,6(W) x 1,2(H) mm circuit substrate: glass laminated epoxy devices are ROHS conform lead free solderable, soldering pads: gold plated taped in 8 mm blister tape, cathode to transporting perforation - all devices sorted into luminous intensity classes - taping: face-up (T) or face-down (TD) possible Absolute Maximum Ratings IF, max[mA] 20 IF,P [mA] tp ≤ 100 µs τ=1: 10 50 VR [V] 4 IR, max [µA] 100 Thermal resistance R thJA [K / W] 450 TOp [°C] -4085 TSt °[C] -5585 20 15 10.

📥 Download Datasheet

Datasheet Details

Part number OLS-150HYG
Manufacturer OSA Opto Light GmbH
File Size 145.24 KB
Description Series 150 - 1206 Standard green 572 nm
Datasheet download datasheet OLS-150HYG Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
OLS-176HY (OLS-176xx) Low Current SMT LEDs CML Innovative Technologies
OLS-176xx (OLS-176xx) Low Current SMT LEDs CML Innovative Technologies
OLS133TR-DPG SURFACE MOUNT LED LAMPS Yellow Stone
OLS170TS-DPG SURFACE MOUNT LED LAMPS ETC
OLS176HY (OLS176xx) Low Current SMT LEDs CML Innovative Technologies

Other Datasheets by OSA Opto Light GmbH

Part Number Description
OLS-150HY-X-T Series 150 - 1206 Standard High luminous intensity
OLS-150 Series 150 - 1206 Standard High luminous intensity
OLS-150BA460 Series 150 - 1206 Standard blue
OLS-150R-CD-T Series 150 - 1206 Standard low cost
OLS-152HY Series 152 - 1206 - Bipolar monocolor High luminous intensity

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

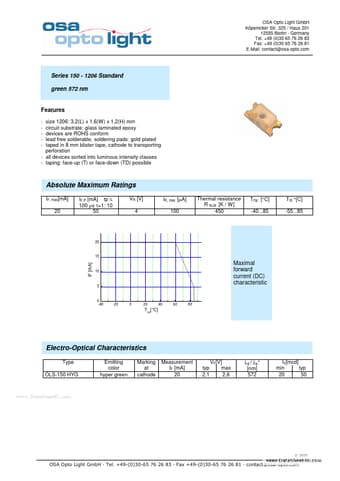

OSA Opto Light GmbH Köpenicker Str. 325 / Haus 201 12555 Berlin - Germany Tel. +49 (0)30 65 76 26 83 Fax: +49 (0)30 65 76 26 81 E-Mail: contact@osa-opto.com Series 150 - 1206 Standard green 572 nm Features size 1206: 3,2(L) x 1,6(W) x 1,2(H) mm circuit substrate: glass laminated epoxy devices are ROHS conform lead free solderable, soldering pads: gold plated taped in 8 mm blister tape, cathode to transporting perforation - all devices sorted into luminous intensity classes - taping: face-up (T) or face-down (TD) possible Absolute Maximum Ratings IF, max[mA] 20 IF,P [mA] tp ≤ 100 µs τ=1: 10 50 VR [V] 4 IR, max [µA] 100 Thermal resistance R thJA [K / W] 450 TOp [°C] -40...85 TSt °[C] -55...
