SUR8840G, SUR8820G Power Rectifiers

SUR8840G Description

MUR805G, MUR810G, MUR815G, MUR820G, MUR840G, MUR860G, MURF860G, SUR8820G, SUR8840G Switch-mode Power Rectifiers This series is designed for use in swi.

SUR8840G Features

* Ultrafast 25 and 50 Nanosecond Recovery Time
* 175°C Operating Junction Temperature
* Epoxy Meets UL 94 V
* 0 @ 0.125 in
* Low Forward Voltage
* Low Leakage Current
* Reverse Voltage to 600 V
* ESD Ratings:
* Machine Model = C (

SUR8840G Applications

* Requiring Unique Site and Control Change Requirements; AEC
* Q101 Qualified and PPAP Capable
* These Devices are Pb
* Free and are RoHS Compliant
* Mechanical Characteristics:
* Case: Epoxy, Molded
* Weight: 1.9 Grams (Approximately)
* Finish: All Exter

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SUR8840G, SUR8820G. Please refer to the document for exact specifications by model.

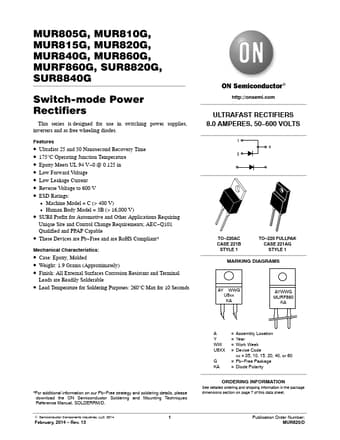

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SUR8840G, SUR8820G
Manufacturer
ON Semiconductor ↗
File Size
128.57 KB
Datasheet
SUR8820G-ONSemiconductor.pdf
Description
Power Rectifiers
Note
This datasheet PDF includes multiple part numbers: SUR8840G, SUR8820G.
Please refer to the document for exact specifications by model.
