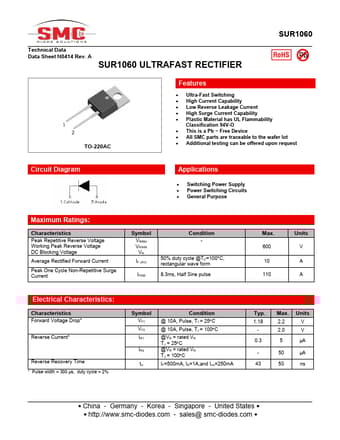

Technical Data Data Sheet N0414 Rev. A
SUR1060 ULTRAFAST RECTIFIER
SUR1060
TO-220AC
Features
Ultra-Fast Switching High Current Capability Low Reverse Leakage Current High Surge Current Capability Plastic Material has UL Flammability
Classification 94V-O This is a Pb − Free Device All SMC parts are traceable to the wafer lot Additional testing can be offered upon request
Circuit Diagram
Applications
Switching Power Supply Power Switching Circuits General Purpose
Maximum Ratings:
Characteristics Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage
Average Rectified Forward Current
Peak One Cycle Non-Repetitive Surge Current
Symbol VRRM VRWM VR
IF (AV)
IFSM
Condition -
50% duty cycle @TC=100°C, rectangular wave form 8.
SUR1060 Datasheet
