P3P85R01A - 75 MHz to 200 MHz LVCMOS TIMING SAFE Peak EMI Reduction Device

ON Semiconductor

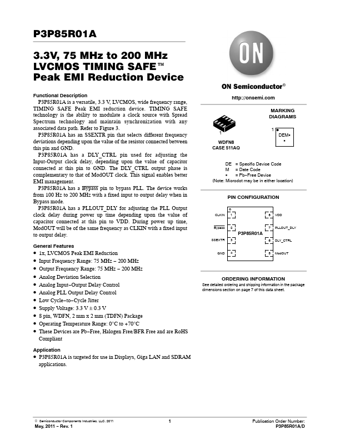

P3P85R01A Datasheet Preview — Preview of P3P85R01A PDF

Datasheet Details

Part number	P3P85R01A
Manufacturer	ON Semiconductor ↗
File Size	135.57 KB
Description	75 MHz to 200 MHz LVCMOS TIMING SAFE Peak EMI Reduction Device
Datasheet	P3P85R01A-ONSemiconductor.pdf

P3P85R01A Product details

Description

P3P85R01A is a versatile, 3.3 V, LVCMOS, wide frequency range, TIMING SAFE Peak EMI reduction device.TIMING SAFE technology is the ability to modulate a clock source with Spread Spectrum technology and maintain synchronization with any associated data path.Refer to Figure 3. P3P85R01A has an SSEXTR pin that selects different frequency deviations depending upon the value of the resistor connected between this pin and GND.P3P85R01A has a DLY_CTRL pin used for adjusting the Input-Output clock de

Features

1x, LVCMOS Peak EMI Reduction.
Input Frequency Range: 75 MHz.
200 MHz.
Output Frequency Range: 75 MHz.
200 MHz.
Analog Deviation Selection.
Analog Input.
Output Delay Control.
Analog PLL Output Delay Control.
Low Cycle.
to.
Cycle Jitter.
Supply Voltage: 3.3 V ± 0.3 V.
8 pin, WDFN, 2 mm x 2 mm (TDFN) Package.
Operating Temperature Range: 0°C to +70°C.
These De.
