P3P8220AH, P3P8220A Datasheet - ON Semiconductor

P3P8220AH General Purpose Peak EMI Reduction IC

P3P8220A/AH is a versatile, 1.8V/2.5V/3.3V Peak EMI reduction IC. P3P8220A accepts an input clock from an external reference and delivers a 1x modulated clock output. P3P8220A is a Low drive part and P3P8220AH is a High drive part. Refer to DC/AC Electrical characteristic table. P3P8220A/AH operates.

P3P8220AH Features

* 1x, LVCMOS Peak EMI Reduction

* Supports Non

* continuous Input Clock Applications

* Input / Output Frequency Range: Up to 60 MHz

* Low and High Drive Part

* Supply Voltage: 1.8 V±0.1 V 2.5 V±0.2 V 3.3 V±0.3 V

* 8

* Pin, WDFN(2 mm x 2 mm)

P3P8220A-ONSemiconductor.pdf

This datasheet PDF includes multiple part numbers: P3P8220AH, P3P8220A. Please refer to the document for exact specifications by model.

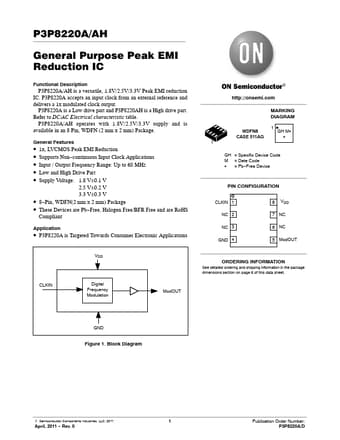

P3P8220AH Datasheet Preview Page 2 P3P8220AH Datasheet Preview Page 3

Datasheet Details

Part number:

P3P8220AH, P3P8220A

Manufacturer:

ON Semiconductor ↗

File Size:

118.17 KB

Description:

General purpose peak emi reduction ic.

Note:

This datasheet PDF includes multiple part numbers: P3P8220AH, P3P8220A.
Please refer to the document for exact specifications by model.
