NZ9F2V4T5G - Zener Voltage Regulators

Product Overview

ON Semiconductor

📥 Download Datasheet

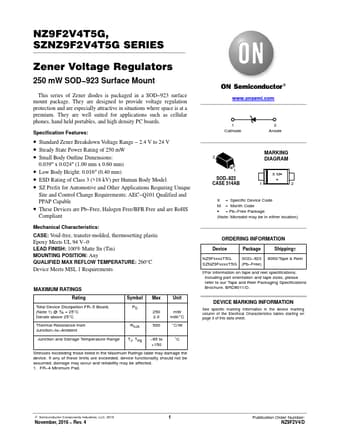

NZ9F2V4T5G Zener Voltage Regulators by ON Semiconductor - Datasheet Preview — Datasheet preview – NZ9F2V4T5G

Datasheet Details

Part number	NZ9F2V4T5G
Manufacturer	ON Semiconductor
File Size	50.35 KB
Description	Zener Voltage Regulators
Datasheet	NZ9F2V4T5G Datasheet
Additional preview pages of the NZ9F2V4T5G datasheet.

Product details

Features

Standard Zener Breakdown Voltage Range.
2.4 V to 24 V.
Steady State Power Rating of 200 mW.
Small Body Outline Dimensions: 0.039″ x 0.024″ (1.00 mm x 0.60 mm).
Low Body Height: 0.016″ (0.40 mm).
ESD Rating of Class 3 (>16 kV) per Human Body Model.
SZ Prefix for Automotive and Other.
