NVH4L015N065SC1 - SiC MOSFET

ON Semiconductor

📥 Download Datasheet

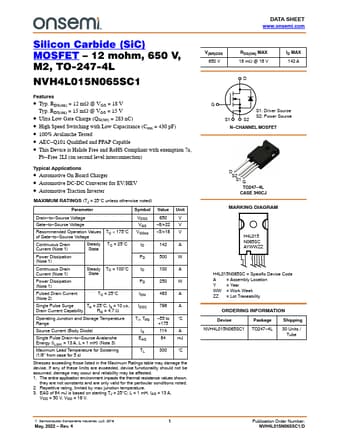

NVH4L015N065SC1 Datasheet Preview — Preview of NVH4L015N065SC1 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	NVH4L015N065SC1
Manufacturer	ON Semiconductor
File Size	327.76 KB
Description	SiC MOSFET
Datasheet	NVH4L015N065SC1-ONSemiconductor.pdf

NVH4L015N065SC1 Product details

Features

Typ. RDS(on) = 12 mW @ VGS = 18 V Typ. RDS(on) = 15 mW @ VGS = 15 V.
Ultra Low Gate Charge (QG(tot) = 283 nC).
High Speed Switching with Low Capacitance (Coss = 430 pF).
100% Avalanche Tested.
AEC.
Q101 Qualified and PPAP Capable.
This Device is Halide Free and RoHS Compliant with exemption 7a, Pb.
Free 2LI (on second level interconnection) Typical.
