NUD3105D - Integrated Relay / Inductive Load Driver

Product Overview

ON Semiconductor

📥 Download Datasheet

NUD3105D Integrated Relay / Inductive Load Driver by ON Semiconductor - Datasheet Preview — Datasheet preview – NUD3105D

Datasheet Details

Part number	NUD3105D
Manufacturer	ON Semiconductor
File Size	137.96 KB
Description	Integrated Relay / Inductive Load Driver
Datasheet	NUD3105D Datasheet

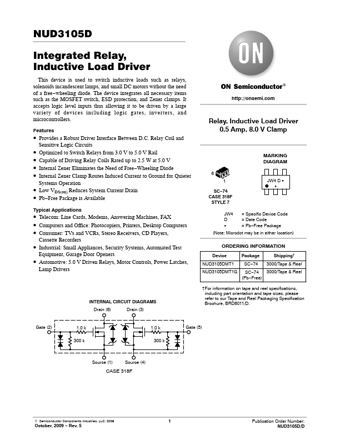

Additional preview pages of the NUD3105D datasheet.

Product details

Features

Provides a Robust Driver Interface Between D. C. Relay Coil and Sensitive Logic Circuits.
Optimized to Switch Relays from 3.0 V to 5.0 V Rail.
Capable of Driving Relay Coils Rated up to 2.5 W at 5.0 V.
Internal Zener Eliminates the Need of Free.
Wheeling Diode.
Internal Zener Clamp Routes Induced Current to Ground for Quieter Systems Operation.
Low VDS(on) Reduces System Current Drain.
Pb.
Free Package is Available Typi.
