NUD3105 - Inductive Load Driver

Product Overview

ON Semiconductor

📥 Download Datasheet

NUD3105 Inductive Load Driver by ON Semiconductor - Datasheet Preview — Datasheet preview – NUD3105

Datasheet Details

Part number	NUD3105
Manufacturer	ON Semiconductor
File Size	203.03 KB
Description	Inductive Load Driver
Datasheet	NUD3105 Datasheet

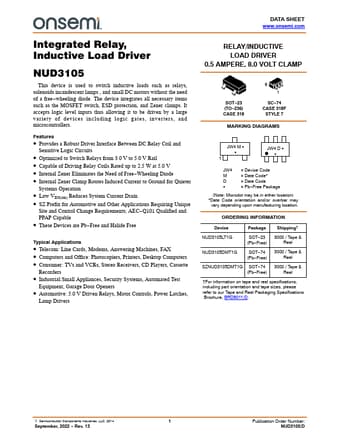

Additional preview pages of the NUD3105 datasheet.

Product details

Features

Provides a Robust Driver Interface Between DC Relay Coil and Sensitive Logic Circuits.
Optimized to Switch Relays from 3.0 V to 5.0 V Rail.
Capable of Driving Relay Coils Rated up to 2.5 W at 5.0 V.
Internal Zener Eliminates the Need of Free.
Wheeling Diode.
Internal Zener Clamp Routes Induced Current to Ground for Quieter Systems Operation.
Low VDS(on) Reduces System Current Drain.
SZ Prefix for Automotive and Other Applicat.
