NTP75N03L09 Power MOSFET

NTP75N03L09 Description

NTP75N03L09, NTB75N03L09 Power MOSFET 75 Amps, 30 Volts N *Channel TO *220 and D2PAK This Logic Level Vertical Power MOSFET is a genera.

NTP75N03L09 Features

* Ultra
* Low RDS(on), Single Base, Advanced Technology
* SPICE Parameters Available
* Diode is Characterized for Use in Bridge Circuits
* IDSS and VDS(on) Specified at Elevated Temperatures
* High Avalanche Energy Specified
* ESD JEDAC Rated HBM

NTP75N03L09 Applications

* Power Supplies
* Inductive Loads
* PWM Motor Controls
* Replaces MTP75N03HDL and MTB75N03HDL in Many Applications © Semiconductor Components Industries, LLC, 2005 1 August, 2005
* Rev. 7 http://onsemi. com 75 AMPERES, 30 VOLTS RDS(on) = 8 mW N
* Cha

📥 Download Datasheet

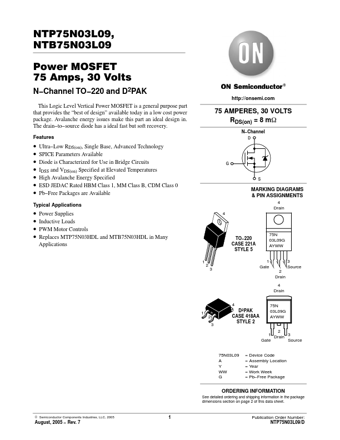

Preview of NTP75N03L09 PDF
datasheet Preview Page 2 datasheet Preview Page 3
