NTP75N03-06 Power MOSFET

NTP75N03-06 Description

NTP75N03 *06, NTB75N03 *06 Power MOSFET 75 Amps, 30 Volts N *Channel TO *220 and D2PAK This 20 VGS gate drive vertical Po.

NTP75N03-06 Features

* Ultra
* Low RDS(on), Single Base, Advanced Technology
* SPICE Parameters Available
* Diode is Characterized for Use in Bridge Circuits
* IDSS and VDS(on) Specified at Elevated Temperatures
* High Avalanche Energy Capability
* ESD JEDAC Rated HB

NTP75N03-06 Applications

* Power Supplies
* Inductive Loads
* PWM Motor Controls
* Replaces MTP1306 and MTB1306 N
* Channel D G S http://onsemi. com V(BR)DSS 30 V RDS(on) TYP 5.3 mW @ 10 V ID MAX 75 A 4 4 1 2 3 TO
* 220AB CASE 221A STYLE 5 2 1 3 D2PAK CASE 418AA STYLE 2 M

📥 Download Datasheet

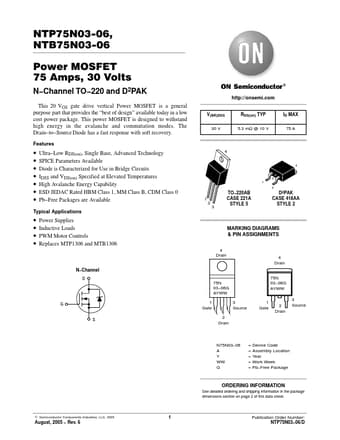

Preview of NTP75N03-06 PDF
datasheet Preview Page 2 datasheet Preview Page 3
