NLAS5157 - Ultra-Low SPDT Analog Switch

Key Features

  • Ultra.
  • Low RON of 0.4 W typical at VCC = 3.0 V and 0.15 W RON Flatness for +3.0 V supply across temperature. This device also has a broad VCC operating range of 1.65 V to 4.5 V, ideal for battery.
  • powered devices. The NLAS5157 is protected on all pins with 8 kV Human Body Model ESD protection. This allows the device to be placed in a variety of locations, including near the interface, without risk of damage. Features.
  • RON = 0.4 W Typical @ VCC = 3.0 V.
  • VCC Range:.

📥 Download Datasheet

Datasheet Details

Part number NLAS5157
Manufacturer onsemi
File Size 114.09 KB
Description Ultra-Low SPDT Analog Switch
Datasheet download datasheet NLAS5157 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NLAS2750 Low Voltage Dual SPDT Analog Switch ON Semiconducto
NLAS323 Dual SPST Analog Switch ON
NLAS324 Dual SPST Analog Switch ON
NLAS3699 Dual DPDT Switch ON
NLAS4053 Analog Multiplexer/Demultiplexer ON

Other Datasheets by onsemi

Part Number Description
NLAS5113 SPST Switch
NLAS5123 SPDT 1 Ohm Ron Switch
NLAS5213 DPST and Dual SPST Switches
NLAS5223 Ultra-Low 0.5ohm Dual SPDT Analog Switch
NLAS52231 Dual SPDT Analog Switch

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

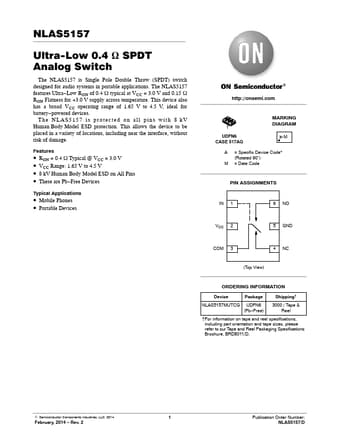

NLAS5157 Ultra-Low 0.4 W SPDT Analog Switch The NLAS5157 is Single Pole Double Throw (SPDT) switch designed for audio systems in portable applications. The NLAS5157 features Ultra−Low RON of 0.4 W typical at VCC = 3.0 V and 0.15 W RON Flatness for +3.0 V supply across temperature. This device also has a broad VCC operating range of 1.65 V to 4.5 V, ideal for battery−powered devices. The NLAS5157 is protected on all pins with 8 kV Human Body Model ESD protection. This allows the device to be placed in a variety of locations, including near the interface, without risk of damage. Features • RON = 0.4 W Typical @ VCC = 3.0 V • VCC Range: 1.65 V to 4.5 V • 8 kV Human Body Model ESD on All Pins • These are Pb−Free Devices Typical Applications • Mobile Phones • Portable Devices http://onsemi.
