NC7SP02 TinyLogic ULP-A NOR Gate

NC7SP02 Description

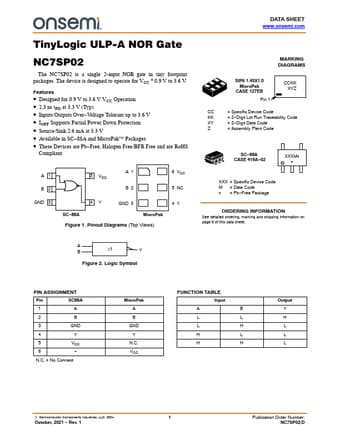

TinyLogic ULP-A NOR Gate NC7SP02 The NC7SP02 is a single 2 *input NOR gate in tiny footprint packages.The device is designed to operate for VC.

NC7SP02 Features

* Designed for 0.9 V to 3.6 V VCC Operation
* 2.3 ns tPD at 3.3 V (Typ)
* Inputs/Outputs Over
* Voltage Tolerant up to 3.6 V
* IOFF Supports Partial Power Down Protection
* Source/Sink 2.6 mA at 3.3 V
* Available in SC
* 88A and MicroPak™ P
