NC7SP158 TinyLogic ULP 2-Input Inverting Multiplexer

NC7SP158 Description

NC7SP158 TinyLogic ULP 2-Input Inverting Multiplexer June 2002 Revised March 2003 NC7SP158 TinyLogic ULP 2-Input Inverting Multiplexer General Des.
The NC7SP158 is a single 2-Input Inverting Multiplexer from Fairchild’s Ultra Low Power (ULP) Series of TinyLogic.

NC7SP158 Features

* s 0.9V to 3.6V VCC supply operation s 3.6V overvoltage tolerant I/O’s at VCC from 0.9V to 3.6V s tPD 3.0 ns typ for 3.0V to 3.6V VCC 4.0 ns typ for 2.3V to 2.7V VCC 5.0 ns typ for 1.65V to 1.95V VCC 7.0 ns typ for 1.40V to 1.60V VCC 11.0 ns typ for 1.10V to 1.30V VCC 30.0 ns typ for 0.90V VCC s Powe

NC7SP158 Applications

* where battery life is critical, this product is designed for ultra low power consumption within the VCC operating range of 0.9V to 3.6V VCC . The internal circuit is composed of a minimum of inverter stages, including the output buffer, to enable ultra low static and dynamic power. The NC7SP158, for

📥 Download Datasheet

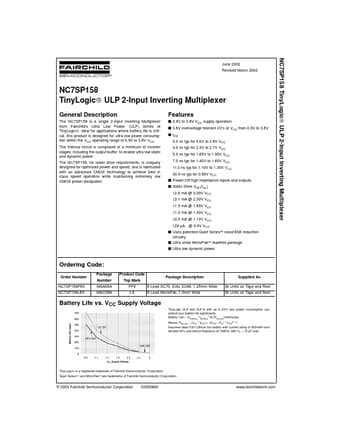

Preview of NC7SP158 PDF
