NB2869A - Reduced EMI Clock Synthesizer

ON Semiconductor

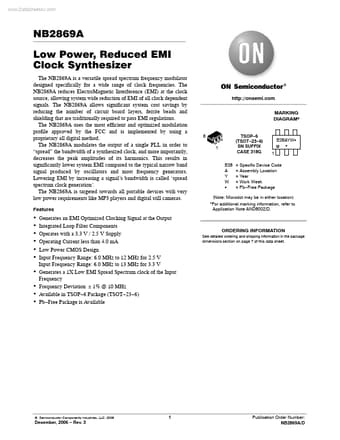

NB2869A Datasheet Preview — Preview of NB2869A PDF

Datasheet Details

Part number	NB2869A
Manufacturer	ON Semiconductor ↗
File Size	142.47 KB
Description	Reduced EMI Clock Synthesizer
Datasheet	NB2869A_ONSemiconductor.pdf

NB2869A Product details

Description

Supply Voltages Frequency Range Cycle to Cycle Jitter Output Duty Cycle Modulation Rate Equation Frequency Deviation For 2.5 V Supply For 3.3 V Supply VSS Specification VDD = 3.3 V / 2.5 V 6 MHz < CLKIN < 12 MHz 6 MHz < CLKIN < 13 MHz 200 ps (maximum) 45/55% (worst case) FIN/256 "1% @ 10 MHz REFOUT XOUT XIN/CLKIN 1 2 3 6 VSS ModOUT VDD NB2869A 5 4 Figure 2. Pin Configuration Table 2. PIN DESCRIPTION Pin # 1 2 3 4 5 6 Pin Name REFOUT XOUT XIN/CLKIN VDD ModOUT VSS Type O O
