MC74HC4052A, MC74HC4051A - Analog Multiplexers/Demultiplexers

ON Semiconductor

The MC74HC4052A by ON Semiconductor is a Analog Multiplexers/Demultiplexers. Below is the official datasheet preview.

📥 Download Datasheet

MC74HC4052A Analog Multiplexers/Demultiplexers by ON Semiconductor - Datasheet Preview — Official preview page of the MC74HC4052A Analog Multiplexers/Demultiplexers datasheet (ON Semiconductor).

Datasheet Details

Part number	MC74HC4052A, MC74HC4051A
Manufacturer	ON Semiconductor
File Size	432.62 KB
Description	Analog Multiplexers/Demultiplexers
Datasheet	MC74HC4051A_ONSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: MC74HC4052A, MC74HC4051A. Please refer to the document for exact specifications by model.

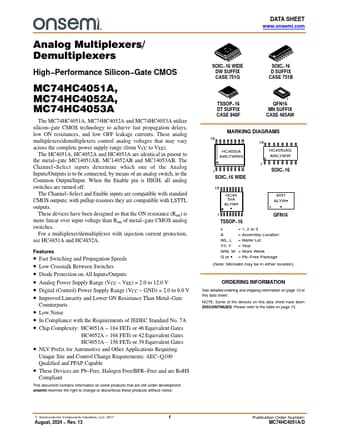

Additional preview pages of the MC74HC4052A datasheet.

MC74HC4052A Product details

Features

Fast Switching and Propagation Speeds.
Low Crosstalk Between Switches.
Diode Protection on All Inputs/Outputs.
Analog Power Supply Range (VCC.
VEE) = 2.0 to 12.0 V.
Digital (Control) Power Supply Range (VCC.
GND) = 2.0 to 6.0 V.
Improved Linearity and Lower ON Resistance Than Metal.
Gate Counterparts.
Low Noise.
In Compliance with the Requirements of JEDEC Standard No. 7A.
Chip Complexity:.
