MC74HC4051A - Analog Multiplexers/Demultiplexers

ON Semiconductor

The MC74HC4051A by ON Semiconductor is a Analog Multiplexers/Demultiplexers. Below is the official datasheet preview.

📥 Download Datasheet

MC74HC4051A Analog Multiplexers/Demultiplexers by ON Semiconductor - Datasheet Preview — Official preview page of the MC74HC4051A Analog Multiplexers/Demultiplexers datasheet (ON Semiconductor).

Datasheet Details

Part number	MC74HC4051A
Manufacturer	ON Semiconductor
File Size	432.62 KB
Description	Analog Multiplexers/Demultiplexers
Datasheet	MC74HC4051A_ONSemiconductor.pdf

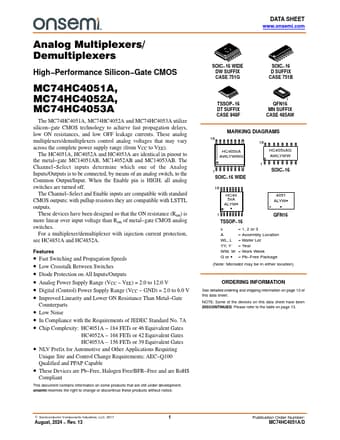

Additional preview pages of the MC74HC4051A datasheet.

MC74HC4051A Product details

Features

Fast Switching and Propagation Speeds.
Low Crosstalk Between Switches.
Diode Protection on All Inputs/Outputs.
Analog Power Supply Range (VCC.
VEE) = 2.0 to 12.0 V.
Digital (Control) Power Supply Range (VCC.
GND) = 2.0 to 6.0 V.
Improved Linearity and Lower ON Resistance Than Metal.
Gate Counterparts.
Low Noise.
In Compliance with the Requirements of JEDEC Standard No. 7A.
Chip Complexity:.
