MC74HC4040A - 12-Stage Binary Ripple Counter

ON Semiconductor

📥 Download Datasheet

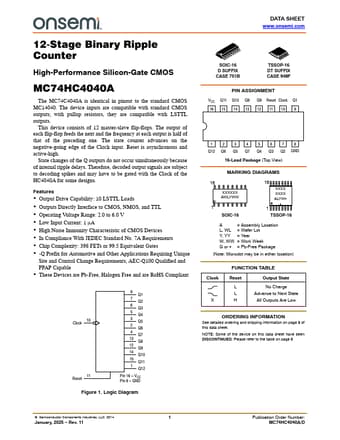

MC74HC4040A Datasheet Preview — Preview of MC74HC4040A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MC74HC4040A
Manufacturer	ON Semiconductor
File Size	281.41 KB
Description	12-Stage Binary Ripple Counter
Datasheet	MC74HC4040A_ONSemiconductor.pdf

MC74HC4040A Product details

Features

Output Drive Capability: 10 LSTTL Loads.
Outputs Directly Interface to CMOS, NMOS, and TTL.
Operating Voltage Range: 2.0 to 6.0 V.
Low Input Current: 1 mA.
High Noise Immunity Characteristic of CMOS Devices.
In Compliance With JEDEC Standard No. 7A Requirements.
Chip Complexity: 398 FETs or 99.5 Equivalent Gates.
-Q Prefix for Automotive and Other.
