MC33274ADTBR2G, MC33272A - Low Input Offset Voltage Operational Amplifier

ON Semiconductor

The MC33274ADTBR2G by ON Semiconductor is a Low Input Offset Voltage Operational Amplifier. Below is the official datasheet preview.

📥 Download Datasheet

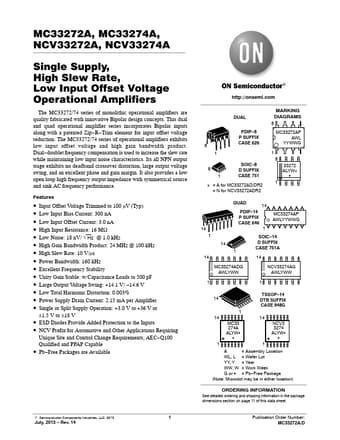

MC33274ADTBR2G Low Input Offset Voltage Operational Amplifier by ON Semiconductor - Datasheet Preview — Official preview page of the MC33274ADTBR2G Low Input Offset Voltage Operational Amplifier datasheet (ON Semiconductor).

Datasheet Details

Part number	MC33274ADTBR2G, MC33272A
Manufacturer	ON Semiconductor
File Size	321.20 KB
Description	Low Input Offset Voltage Operational Amplifier
Datasheet	MC33272A_ONSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: MC33274ADTBR2G, MC33272A. Please refer to the document for exact specifications by model.
Additional preview pages of the MC33274ADTBR2G datasheet.

MC33274ADTBR2G Product details

Features

Input Offset Voltage Trimmed to 100 mV (Typ).
Low Input Bias Current: 300 nA.
Low Input Offset Current: 3.0 nA.
High Input Resistance: 16 MW.
Low Noise: 18 nV/ √ Hz @ 1.0 kHz.
High Gain Bandwidth Product: 24 MHz @ 100 kHz.
High Slew Rate: 10 V/ms.
Power Bandwidth: 160 kHz.
Excellent Frequency Stability.
Unity Gain Stable: w/Capacitance Loads to 500 pF.
Large Output Voltage Swing: +14.1 V/.
