MC33274ADR2G - Low Input Offset Voltage Operational Amplifier

Download the MC33274ADR2G datasheet PDF. This datasheet also covers the MC33272A variant, as both devices belong to the same low input offset voltage operational amplifier family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • Input Offset Voltage Trimmed to 100 mV (Typ).
  • Low Input Bias Current: 300 nA.
  • Low Input Offset Current: 3.0 nA.
  • High Input Resistance: 16 MW.
  • Low Noise: 18 nV/ √ Hz @ 1.0 kHz.
  • High Gain Bandwidth Product: 24 MHz @ 100 kHz.
  • High Slew Rate: 10 V/ms.
  • Power Bandwidth: 160 kHz.
  • Excellent Frequency Stability.
  • Unity Gain Stable: w/Capacitance Loads to 500 pF.
  • Large Output Voltage Swing: +14.1 V/.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MC33272A_ONSemiconductor.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MC33274ADR2G
Manufacturer onsemi
File Size 321.20 KB
Description Low Input Offset Voltage Operational Amplifier
Datasheet download datasheet MC33274ADR2G Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MC33274A HIGH PERFORMANCE OPERATIONAL AMPLIFIERS Motorola
MC33274 HIGH PERFORMANCE OPERATIONAL AMPLIFIERS Motorola
MC33272 HIGH PERFORMANCE OPERATIONAL AMPLIFIERS Motorola
MC33272 LOW INPUT OFFSET VOLTAGE OPERATIONAL AMPLIFIERS Unisonic Technologies
MC33272A HIGH PERFORMANCE OPERATIONAL AMPLIFIERS Motorola

Other Datasheets by onsemi

Part Number Description
MC33274ADR2 Low Input Offset Voltage Operational Amplifier
MC33274AD Low Input Offset Voltage Operational Amplifier
MC33274ADG Low Input Offset Voltage Operational Amplifier
MC33274ADTBR2G Low Input Offset Voltage Operational Amplifier
MC33274A (MC33272A / MC33274A) Low Input Offset Voltage Operational Amplifiers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

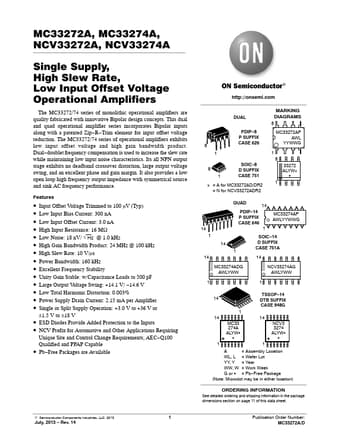

MC33272A, MC33274A, NCV33272A, NCV33274A Single Supply, High Slew Rate, Low Input Offset Voltage Operational Amplifiers The MC33272/74 series of monolithic operational amplifiers are quality fabricated with innovative Bipolar design concepts. This dual and quad operational amplifier series incorporates Bipolar inputs along with a patented Zip−R−Trim element for input offset voltage reduction. The MC33272/74 series of operational amplifiers exhibits low input offset voltage and high gain bandwidth product. Dual−doublet frequency compensation is used to increase the slew rate while maintaining low input noise characteristics. Its all NPN output stage exhibits no deadband crossover distortion, large output voltage swing, and an excellent phase and gain margin.
