MC14081B - CMOS Gates

Product Overview

ON Semiconductor

Datasheet Details

Part number	MC14081B
Manufacturer	ON Semiconductor
File Size	264.93 KB
Description	CMOS Gates
Datasheet	MC14081B Datasheet
Note	This datasheet PDF includes multiple part numbers: MC14081B, MC14001B. Please refer to the document for exact specifications by model.

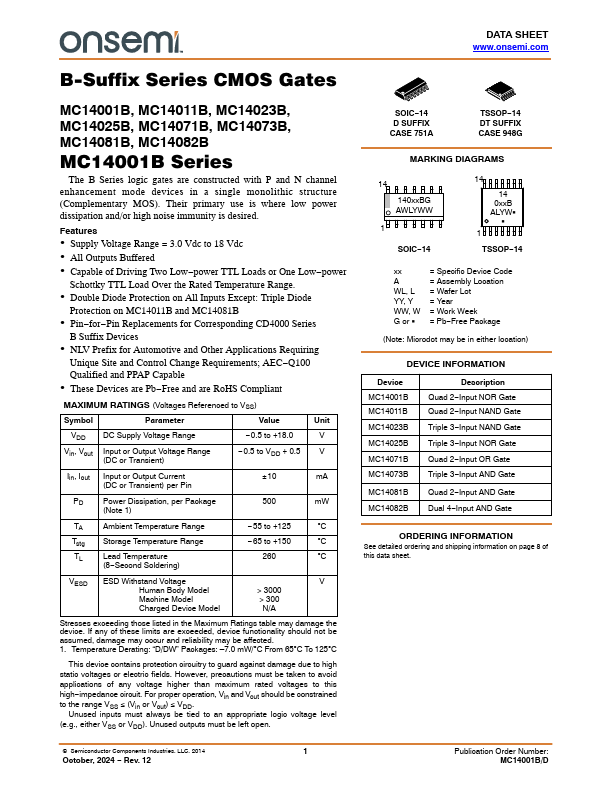

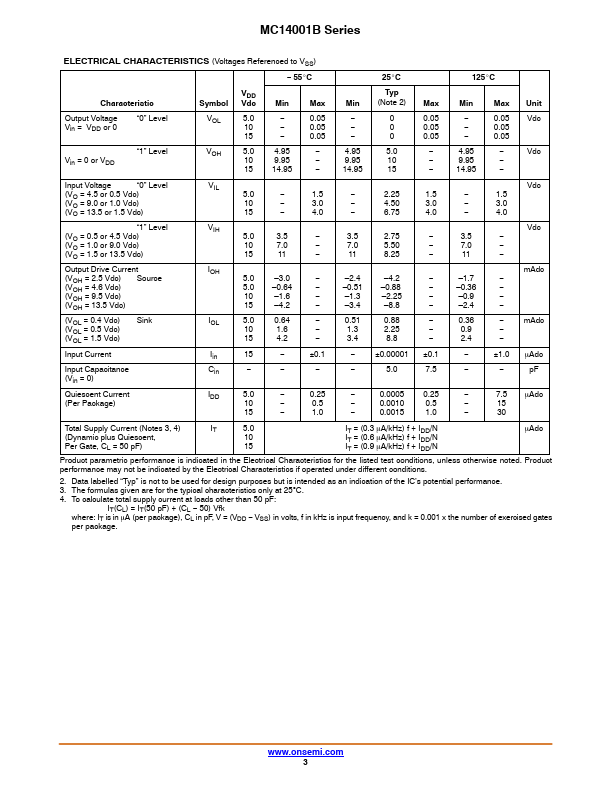

Additional preview pages of the MC14081B datasheet.

Product details

Description

Quad 2 Input NOR Gate Quad 2 Input NAND Gate Triple 3 Input NAND Gate Triple 3 Input NOR Gate Quad 2 Input OR Gate Triple 3 Input AND Gate MC14081B MC14082B Quad 2 Input AND Gate Dual 4 Input AND Gate ORDERING INFORMATION See detailed ordering and shipping information on page 8 of this data sheet. Semiconductor Components Industries, LLC, 2014 1 October, 2024 Rev.

Features

Supply Voltage Range = 3.0 Vdc to 18 Vdc.
All Outputs Buffered.
Capable of Driving Two Low.
power TTL Loads or One Low.
power Schottky TTL Load Over the Rated Temperature Range.
Double Diode Protection on All Inputs Except: Triple Diode Protection on MC14011B and MC14081B.
Pin.
for.
Pin Replacements for Corresponding CD4000 Series B Suffix Devices.
NLV Prefix for Automotive and Other.
