MC12026A - 1.1 GHz Dual Modulus Prescaler

ON Semiconductor

📥 Download Datasheet

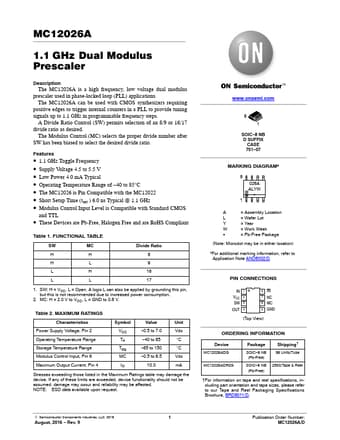

MC12026A Datasheet Preview — Preview of MC12026A PDF

Datasheet Details

Part number	MC12026A
Manufacturer	ON Semiconductor
File Size	127.38 KB
Description	1.1 GHz Dual Modulus Prescaler
Datasheet	MC12026A_ONSemiconductor.pdf

MC12026A Product details

Description

The MC12026A is a high frequency, low voltage dual modulus prescaler used in phase-locked loop (PLL) applications.The MC12026A can be used with CMOS synthesizers requiring positive edges to trigger internal counters in a PLL to provide tuning signals up to 1.1 GHz in programmable frequency steps.A Divide Ratio Control (SW) permits selection of an 8/9 or 16/17 divide ratio as desired.The Modulus Control (MC) selects the proper divide number after SW has been biased to select the desired divide

Features

1.1 GHz Toggle Frequency.
Supply Voltage 4.5 to 5.5 V.
Low Power 4.0 mA Typical.
Operating Temperature Range of.
40 to 85°C.
The MC12026 is Pin Compatible with the MC12022.
Short Setup Time (tset ) 6.0 ns Typical @ 1.1 GHz.
Modulus Control Input Level is Compatible with Standard CMOS and TTL.
These Devices are Pb-Free, Halogen Free and are RoHS Compliant Table 1.
