MC100LE310 - LOW VOLTAGE 2:8 DIFFERENTIAL FANOUT BUFFER

Product Overview

ON Semiconductor

📥 Download Datasheet

MC100LE310 LOW VOLTAGE 2:8 DIFFERENTIAL FANOUT BUFFER by ON Semiconductor - Datasheet Preview — Datasheet preview – MC100LE310

Datasheet Details

Part number	MC100LE310
Manufacturer	ON Semiconductor
File Size	130.33 KB
Description	LOW VOLTAGE 2:8 DIFFERENTIAL FANOUT BUFFER
Datasheet	MC100LE310 Datasheet

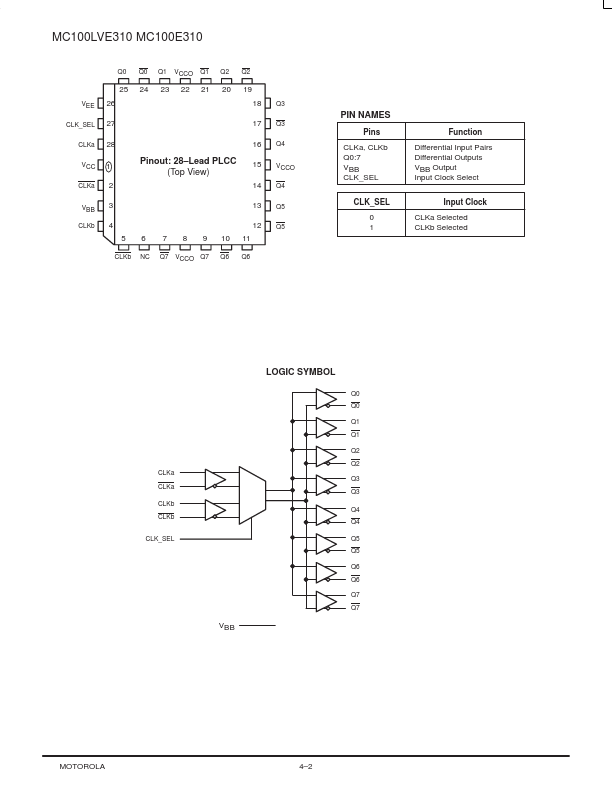

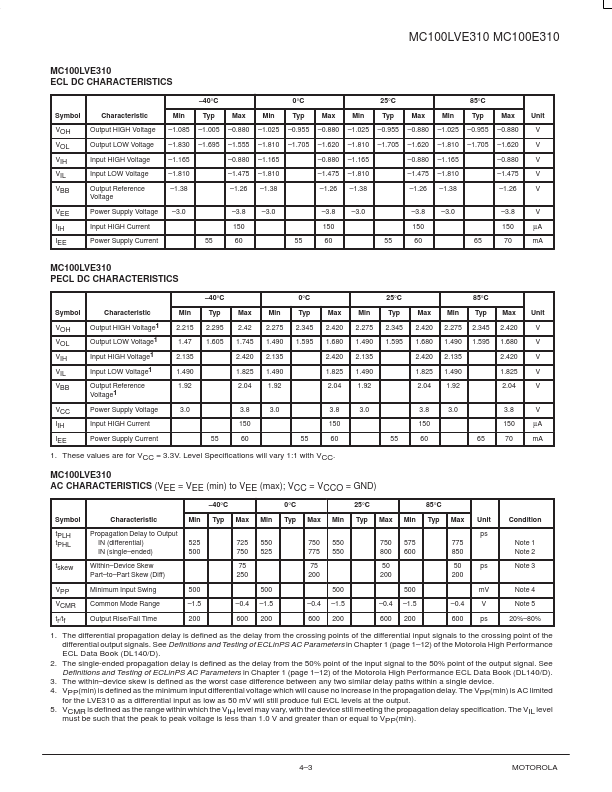

Additional preview pages of the MC100LE310 datasheet.

Product details

Features

fully differential clock paths to minimize both device and system skew. The LVE310 offers two selectable clock inputs to allow for redundant or test clocks to be incorporated into the system clock trees. The MC100E310 is pin compatible to the National 100310 device. The MC100LVE310 works from a.
3.3V supply while the MC100E310 provides identical function and performance from a standard.
4.5V 100E voltage supply. LOW.
