MC100EL14 - 1:5 Clock Distribution Chip

Product Overview

ON Semiconductor

Datasheet Details

Part number	MC100EL14
Manufacturer	ON Semiconductor
File Size	137.41 KB
Description	1:5 Clock Distribution Chip
Datasheet	MC100EL14 Datasheet

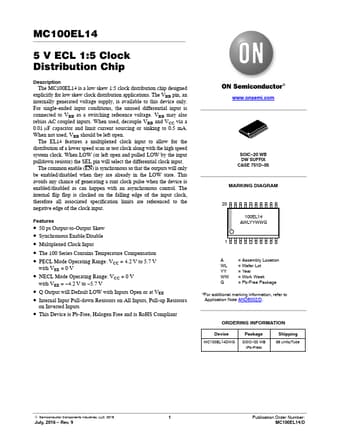

Additional preview pages of the MC100EL14 datasheet.

Product details

Description

The MC100EL14 is a low skew 1:5 clock distribution chip designed explicitly for low skew clock distribution applications.The VBB pin, an internally generated voltage supply, is available to this device only.For single-ended input conditions, the unused differential input is connected to VBB as a switching reference voltage.VBB may also rebias AC coupled inputs.When used, decouple VBB and VCC via a 0.01 mF capacitor and limit current sourcing or sinking to 0.5 mA.When not used, VBB should be

Features

a multiplexed clock input to allow for the distribution of a lower speed scan or test clock along with the high speed system clock. When LOW (or left open and pulled LOW by the input pulldown resistor) the SEL pin will select the differential clock input. The common enable (EN) is synchronous so that the outputs will only be enabled/disabled when they are already in the LOW state. This avoids any chance of generating a runt clock pulse when the device is enabled/disabled as can happen with an as.
