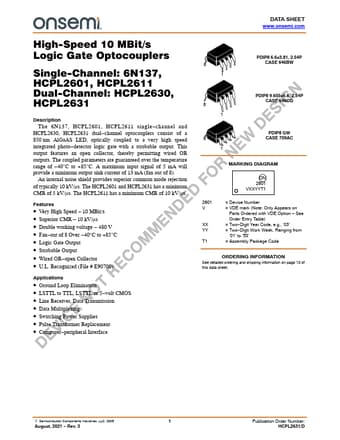

High-Speed 10 MBit/s Logic Gate Optocouplers Single-Channel: 6N137, HCPL2601, HCPL2611 Dual-Channel: HCPL2630, HCPL2631 .
The 6N137, HCPL2601, HCPL2611 single.
channel and
HCPL2630, HCPL2631 dual.
channel optocouplers consist of a 850 nm AlGaAS LED, opticall.
Features
* an open collector, thereby permitting wired OR outputs. The coupled parameters are guaranteed over the temperature range of
* 40°C to +85°C. A maximum input signal of 5 mA will provide a minimum output sink current of 13 mA (fan out of 8). An internal noise shield provides superior common mod
Applications
* Ground Loop Elimination
* LSTTL to TTL, LSTTL or 5
* volt CMOS
* Line Receiver, Data Transmission
* Data Multiplexing
* Switching Power Supplies
* Pulse Transformer Replacement
* Computer
* peripheral Interface
