HCPL2631M, HCPL2601M Dual-Channel High-Speed 10 MBit/s Logic Gate Optocouplers

Fairchild Semiconductor

Description

Single-Channel: 6N137M, HCPL2601M, HCPL2611M Dual-Channel: HCPL2630M, HCPL2631M * High Speed 10MBit/s Logic Gate Optocouplers April 2013 Sin.
The 6N137M, HCPL2601M, HCPL2611M single-channel and HCPL2630M, HCPL2631M dual-channel optocouplers consist of a 850 nm AlGaAS LED, optically coupled t.

📥 Download Datasheet

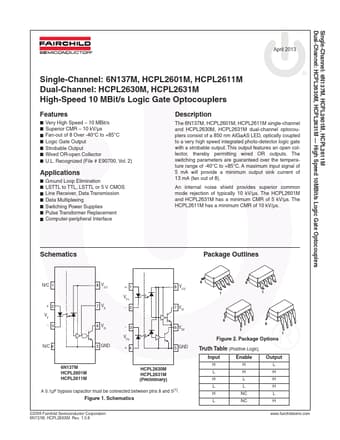

HCPL2631M Datasheet Preview — This datasheet PDF includes multiple part numbers: HCPL2631M, HCPL2601M. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: HCPL2631M, HCPL2601M
Manufacturer: Fairchild Semiconductor
File Size: 3.27 MB
Datasheet: HCPL2601M-FairchildSemiconductor.pdf
Description: Dual-Channel High-Speed 10 MBit/s Logic Gate Optocouplers
Note: This datasheet PDF includes multiple part numbers: HCPL2631M, HCPL2601M.
Please refer to the document for exact specifications by model.

Applications

* Ground Loop Elimination LSTTL to TTL, LSTTL or 5 V CMOS Line Receiver, Data Transmission Data Multiplexing Switching Power Supplies Pulse Transformer Replacement Computer-peripheral Interface Schematics Package Outlines N/C 1 8 VCC 8 + 1 VF1 8 VCC 1
