FUSB252 - Type-C CC

ON Semiconductor

📥 Download Datasheet

FUSB252 Datasheet Preview — Preview of FUSB252 PDF

Datasheet Details

Part number	FUSB252
Manufacturer	ON Semiconductor
File Size	330.09 KB
Description	Type-C CC
Datasheet	FUSB252-ONSemiconductor.pdf

FUSB252 Product details

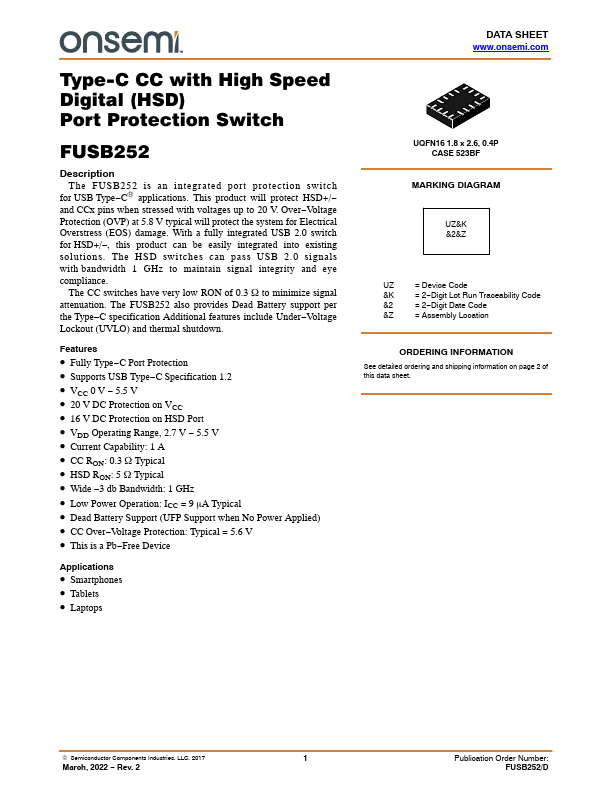

Description

The FUSB252 is an integrated port protection switch for USB Type C® applications. and CCx pins when stressed with voltages up to 20 V. Voltage Protection (OVP) at 5.8 V typical will protect the system for Electrical Overstress (EOS) damage. , this product can be easily integrated into existing solutions.

Features

include Under.
Voltage Lockout (UVLO) and thermal shutdown. Features.
Fully Type.
C Port Protection.
Supports USB Type.
C Specification 1.2.
VCC 0 V.
5.5 V.
20 V DC Protection on VCC.
16 V DC Protection on HSD Port.
VDD Operating Range, 2.7 V.
5.5 V.
Current Capability: 1 A.
CC RON: 0.3 W Typical.
HSD RON: 5 W Typical.
Wide.
3 db Bandwidth: 1 GHz.
Low.
