FUSB302B - Programmable USB Type-C Controller

ON Semiconductor

📥 Download Datasheet

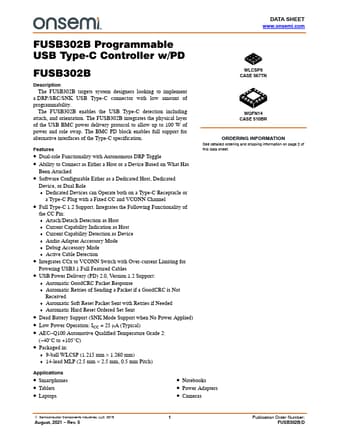

FUSB302B Datasheet Preview — Preview of FUSB302B PDF

Datasheet Details

Part number	FUSB302B
Manufacturer	ON Semiconductor
File Size	425.94 KB
Description	Programmable USB Type-C Controller
Datasheet	FUSB302B-ONSemiconductor.pdf

FUSB302B Product details

Description

The FUSB302B targets system designers looking to implement a DRP/SRC/SNK USB Type-C connector with low amount of programmability.The FUSB302B enables the USB Type-C detection including attach, and orientation.The FUSB302B integrates the physical layer of the USB BMC power delivery protocol to allow up to 100 W of power and role swap.The BMC PD block enables full support for alternative interfaces of the Type-C specification.

Features

Dual-role Functionality with Autonomous DRP Toggle.
Ability to Connect as Either a Host or a Device Based on What Has Been Attached.
Software Configurable Either as a Dedicated Host, Dedicated Device, or Dual Role.
Dedicated Devices can Operate both on a Type-C Receptacle or a Type-C Plug with a Fixed CC and VCONN Channel.
Full Type-C 1.2 Support. Integrates the Following Functionality of the CC Pin:.
Attach/Detach Detection as Host.
