FSUSB43 - USB2.0 Switch

ON Semiconductor

The FSUSB43 by ON Semiconductor is a USB2.0 Switch. Below is the official datasheet preview.

📥 Download Datasheet

FSUSB43 USB2.0 Switch by ON Semiconductor - Datasheet Preview — Official preview page of the **FSUSB43** USB2.0 Switch datasheet (ON Semiconductor).

Datasheet Details

Part number	FSUSB43
Manufacturer	ON Semiconductor
File Size	265.31 KB
Description	USB2.0 Switch
Datasheet	FSUSB43-ONSemiconductor.pdf

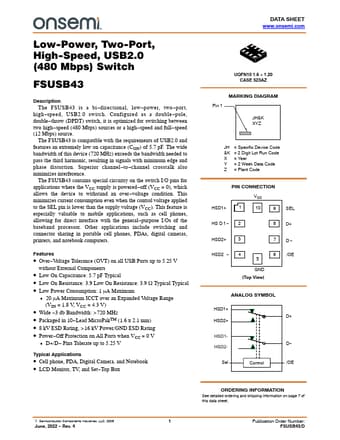

Additional preview pages of the FSUSB43 datasheet.

FSUSB43 Product details

Description

The FSUSB43 is a bi directional, low power, two port, high speed, USB2.0 switch. pole, double throw (DPDT) switch, it is optimized for switching between two high speed (480 Mbps) sources or a high speed and full speed (12 Mbps) source.

Features

an extremely low on capacitance (CON) of 5.7 pF. The wide bandwidth of this device (720 MHz) exceeds the bandwidth needed to pass the third harmonic, resulting in signals with minimum edge and phase distortion. Superior channel.
to.
channel crosstalk also minimizes interference. The FSUSB43 contains special circuitry on the switch I/O pins for.
