FSUSB42 - USB2.0 UART Switch

ON Semiconductor

The FSUSB42 by ON Semiconductor is a USB2.0 UART Switch. Below is the official datasheet preview.

📥 Download Datasheet

FSUSB42 USB2.0 UART Switch by ON Semiconductor - Datasheet Preview — Official preview page of the **FSUSB42** USB2.0 UART Switch datasheet (ON Semiconductor).

Datasheet Details

Part number	FSUSB42
Manufacturer	ON Semiconductor
File Size	305.46 KB
Description	USB2.0 UART Switch
Datasheet	FSUSB42-ONSemiconductor.pdf

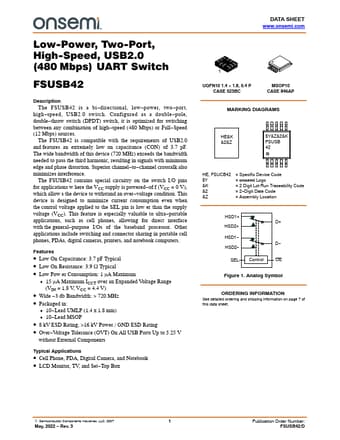

Additional preview pages of the FSUSB42 datasheet.

FSUSB42 Product details

Description

The FSUSB42 is a bi directional, low power, two port, high speed, USB2.0 switch. pole, double throw switch (DPDT) switch, it is optimized for switching between any combination of high speed (480 Mbps) or Full Speed (12 Mbps) sources.

Features

an extremely low on capacitance (CON) of 3.7 pF. The wide bandwidth of this device (720 MHz) exceeds the bandwidth needed to pass the third harmonic, resulting in signals with minimum edge and phase distortion. Superior channel.
to.
channel crosstalk also minimizes interference. The FSUSB42 contains special circuitry on the switch I/O pins for.
