FGA25N120ANTDTU, FGA25N120 - NPT Trench IGBT

Name: FGA25N120ANTDTU
SKU: FGA25N120ANTDTU-1488087

ON Semiconductor

📥 Download Datasheet

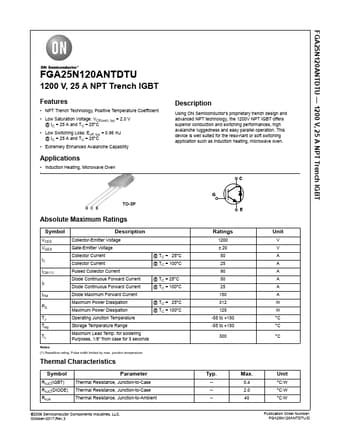

FGA25N120ANTDTU Datasheet Preview — This datasheet PDF includes multiple part numbers: FGA25N120ANTDTU, FGA25N120. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	FGA25N120ANTDTU, FGA25N120
Manufacturer	ON Semiconductor
File Size	1.34 MB
Description	NPT Trench IGBT
Datasheet	FGA25N120-ONSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: FGA25N120ANTDTU, FGA25N120. Please refer to the document for exact specifications by model.

FGA25N120ANTDTU Product details

Description

Using ON Semiconductor's proprietary trench design and advanced NPT technology, the 1200V NPT IGBT offers superior conduction and switching performances, high avalanche ruggedness and easy parallel operation.

Features

NPT Trench Technology, Positive Temperature Coefficient.
Low Saturation Voltage: VCE(sat), typ = 2.0 V @ IC = 25 A and TC = 25°C.
Low Switching Loss: Eoff, typ = 0.96 mJ @ IC = 25 A and TC = 25°C.
Extremely Enhanced Avalanche Capability.
