FDP3682 - 100V 32A N-Channel MOSFET

ON Semiconductor

📥 Download Datasheet

FDP3682 Datasheet Preview — Preview of FDP3682 PDF

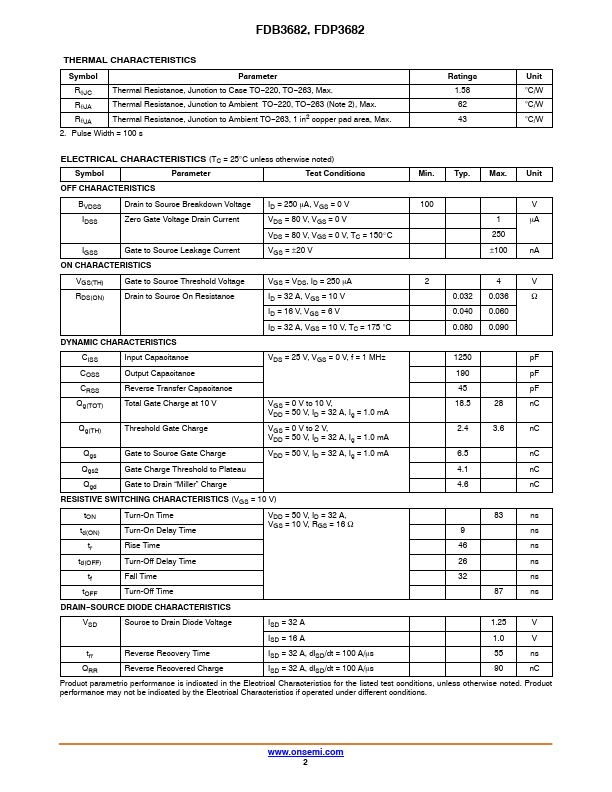

datasheet Preview Page 2

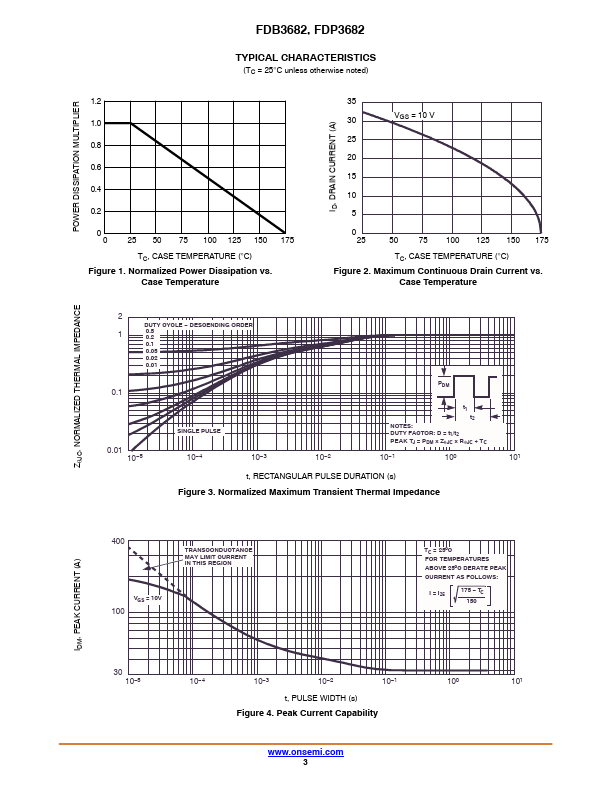

datasheet Preview Page 3

Datasheet Details

Part number	FDP3682
Manufacturer	ON Semiconductor
File Size	481.33 KB
Description	100V 32A N-Channel MOSFET
Datasheet	FDP3682-ONSemiconductor.pdf

FDP3682 Product details

Features

RDS(on) = 32 mW (Typ. ) @ VGS = 10 V, ID = 32 A.
QG(tot) = 18.5 nC (Typ. ) @ VGS = 10 V.
Low Miller Charge.
Low Qrr Body Diode.
UIS Capability (Single Pulse and Repetitive Pulse).
These Devices are Pb.
Free and are RoHS Compliant.
