FDP3672 - N-Channel MOSFET

Fairchild Semiconductor

📥 Download Datasheet

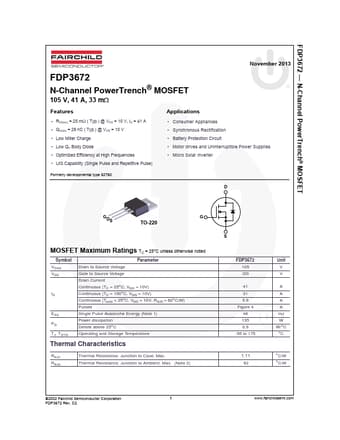

FDP3672 Datasheet Preview — Preview of FDP3672 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	FDP3672
Manufacturer	Fairchild Semiconductor
File Size	576.48 KB
Description	N-Channel MOSFET
Datasheet	FDP3672_FairchildSemiconductor.pdf

FDP3672 Product details

Features

RDS(on) = 25 mΩ ( Typ. ) @ VGS = 10 V, ID = 41 A.
QG(tot) = 28 nC ( Typ. ) @ VGS = 10 V.
Low Miller Charge.
Low Qrr Body Diode.
Optimized Efficiency at High Frequencies.
UIS Capability (Single Pulse and Repetitive Pulse).
