FDP2552 150V 37A N-Channel MOSFET

ON Semiconductor

Description

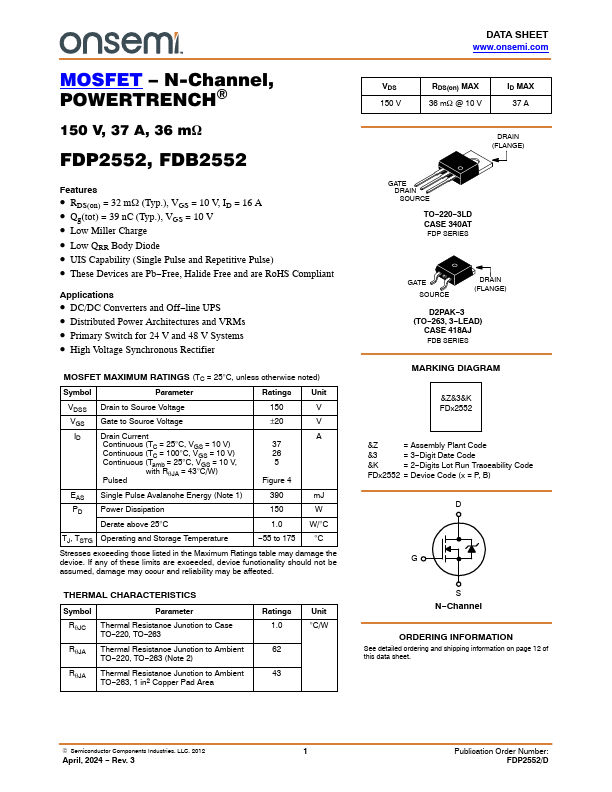

MOSFET * N-Channel, POWERTRENCH) 150 V, 37 A, 36 mW FDP2552, FDB2552 .

📥 Download Datasheet

FDP2552 Datasheet Preview — Preview of FDP2552 PDF

Datasheet Specifications

Part number: FDP2552
Manufacturer: ON Semiconductor ↗
File Size: 471.28 KB
Datasheet: FDP2552-ONSemiconductor.pdf
Description: 150V 37A N-Channel MOSFET

Features

* RDS(on) = 32 mW (Typ. ), VGS = 10 V, ID = 16 A
* Qg(tot) = 39 nC (Typ. ), VGS = 10 V
* Low Miller Charge
* Low QRR Body Diode
* UIS Capability (Single Pulse and Repetitive Pulse)
* These Devices are Pb
* Free, Halide Free and are RoHS Compliant A

Applications

* DC/DC Converters and Off
* line UPS
* Distributed Power Architectures and VRMs
* Primary Switch for 24 V and 48 V Systems
* High Voltage Synchronous Rectifier MOSFET MAXIMUM RATINGS (TC = 25°C, unless otherwise noted) Symbol Parameter Ratings Unit VDSS Dr
