FDMC7200 - Dual N-Channel MOSFET

ON Semiconductor

📥 Download Datasheet

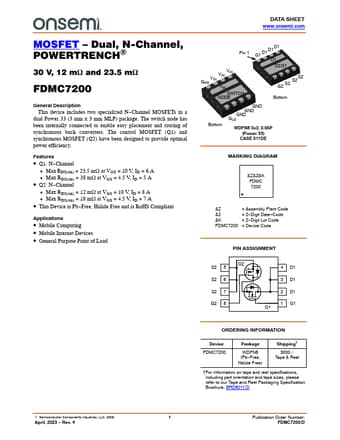

FDMC7200 Datasheet Preview — Preview of FDMC7200 PDF

Datasheet Details

Part number	FDMC7200
Manufacturer	ON Semiconductor
File Size	348.84 KB
Description	Dual N-Channel MOSFET
Datasheet	FDMC7200-ONSemiconductor.pdf

FDMC7200 Product details

Description

This device includes two specialized N Channel MOSFETs in a dual Power 33 (3 mm x 3 mm MLP) package.The switch node has been internally connected to enable easy placement and routing of synchronous buck converters.The control MOSFET (Q1) and synchronous MOSFET (Q2) have been designed to provide optimal power efficiency.

Features

Q1: N.
Channel.
Max RDS(on) = 23.5 mW at VGS = 10 V, ID = 6 A.
Max RDS(on) = 38 mW at VGS = 4.5 V, ID = 5 A.
Q2: N.
Channel.
Max RDS(on) = 12 mW at VGS = 10 V, ID = 8 A.
Max RDS(on) = 18 mW at VGS = 4.5 V, ID = 7 A.
This Device is Pb.
Free, Halide Free and is RoHS Compliant.
