FDB3682 - 100V 32A N-Channel MOSFET

Product Overview

ON Semiconductor

📥 Download Datasheet

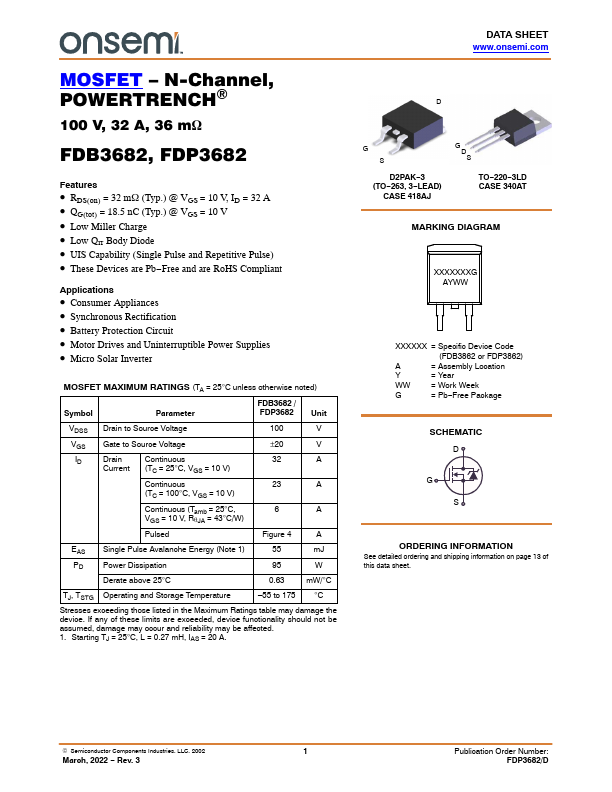

FDB3682 100V 32A N-Channel MOSFET by ON Semiconductor - Datasheet Preview — Datasheet preview – FDB3682

Datasheet Details

Part number	FDB3682
Manufacturer	ON Semiconductor
File Size	494.62 KB
Description	100V 32A N-Channel MOSFET
Datasheet	FDB3682 Datasheet

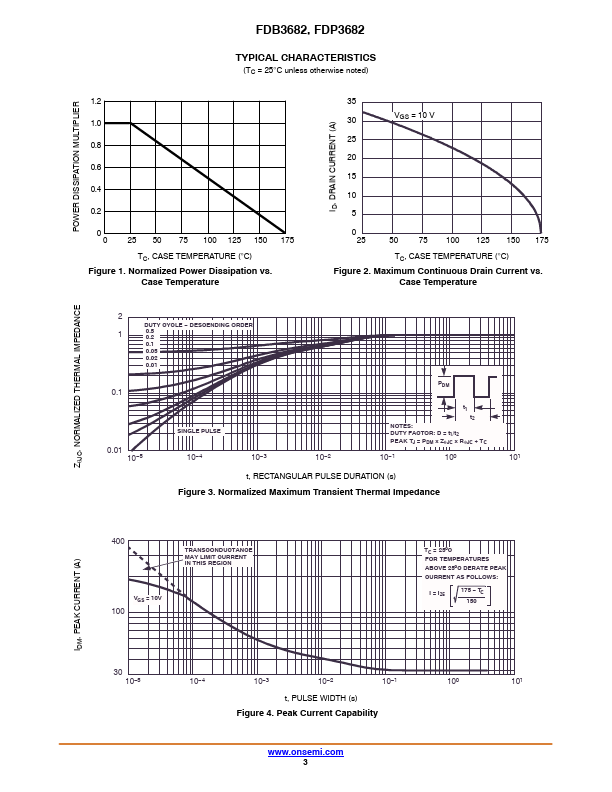

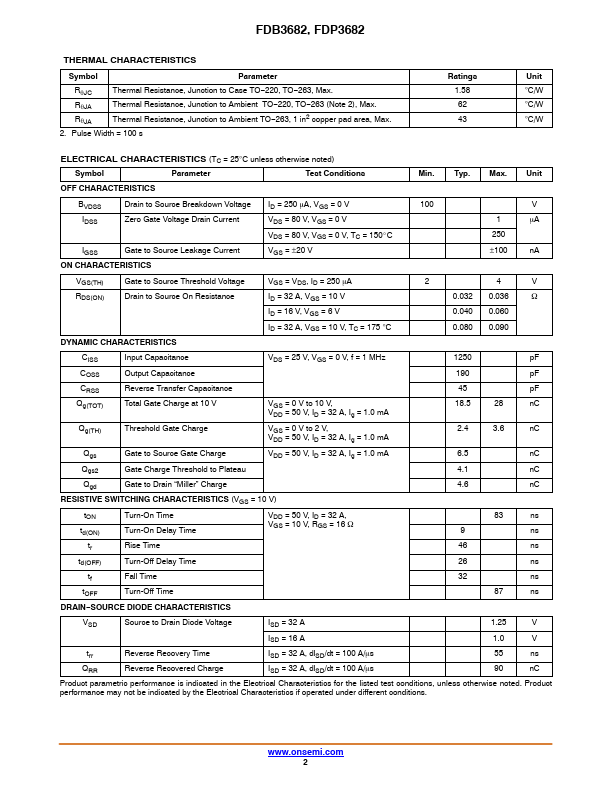

Additional preview pages of the FDB3682 datasheet.

Product details

Features

RDS(on) = 32 mW (Typ. ) @ VGS = 10 V, ID = 32 A.
QG(tot) = 18.5 nC (Typ. ) @ VGS = 10 V.
Low Miller Charge.
Low Qrr Body Diode.
UIS Capability (Single Pulse and Repetitive Pulse).
These Devices are Pb.
Free and are RoHS Compliant.
