FAN54120 - 500mA USB Compatible Single Cell Li-Lon Linear Charger

ON Semiconductor

📥 Download Datasheet

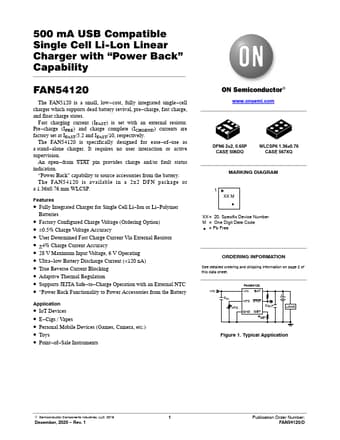

FAN54120 Datasheet Preview — Preview of FAN54120 PDF

Datasheet Details

Part number	FAN54120
Manufacturer	ON Semiconductor
File Size	428.96 KB
Description	500mA USB Compatible Single Cell Li-Lon Linear Charger
Datasheet	FAN54120-ONSemiconductor.pdf

FAN54120 Product details

Description

Supplier Parametr Unit Typ.CIN 1.0 mF, 25 V, 10%, X5R, 0603 Murata GRM188R61E105KAAD C mF 1.0 (Note 2) COUT (Note 1) 1.0 mF, 10 V, 10%, X5R, 0402 Murata GRM155R61A105KE15 C mF 1.0 (Note 2) NTC 10 KW, 1%, B25/85 = 3380, 0402 Murata NCP15XH103F03RC R25 KW 10 1. The minimum required COUT value is shown.The expected bypass capacitance range is 1 μF to 10 μF.For applications with large dynamic pulsed loads, additional COUT may be necessary to constraint voltage deviations.2.

Features

Fully Integrated Charger for Single Cell Li.
Ion or Li.
Polymer Batteries.
Factory Configured Charge Voltage (Ordering Option).
±0.5% Charge Voltage Accuracy.
User Determined Fast Charge Current Via External Resistor.
+4% Charge Current Accuracy.
28 V Maximum Input Voltage, 6 V Operating.
Ultra.
low Battery Discharge Current (.
