FAN54015, FAN54013 - USB-Compliant Single Cell Li-Ion Switching Charger

Fairchild Semiconductor

📥 Download Datasheet

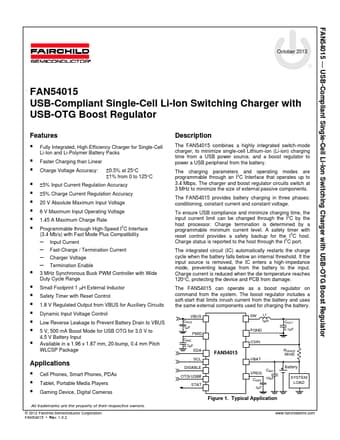

FAN54015 Datasheet Preview — This datasheet PDF includes multiple part numbers: FAN54015, FAN54013. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	FAN54015, FAN54013
Manufacturer	Fairchild Semiconductor
File Size	1.64 MB
Description	USB-Compliant Single Cell Li-Ion Switching Charger
Datasheet	FAN54013_FairchildSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: FAN54015, FAN54013. Please refer to the document for exact specifications by model.

FAN54015 Product details

Description

The FAN54015 combines a highly integrated switch-mode charger, to minimize single-cell Lithium-ion (Li-ion) charging time from a USB power source, and a boost regulator to power a USB peripheral from the battery.

Features

Fully Integrated, High-Efficiency Charger for Single-Cell Li-Ion and Li-Polymer Battery Packs.
Faster Charging than Linear.
Charge Voltage Accuracy: 0.5% at 25°C 1% from 0 to 125°C.
5% Input Current Regulation Accuracy.
5% Charge Current Regulation Accuracy.
20 V Absolute Maximum Input Voltage.
6 V Maximum Input Operating Voltage.
1.45 A Maximum Charge Rate.
Programmable through High-Speed I2C Interface (3.4 Mb/s) with Fast Mode Plus Compatibilit.
