CM2020-00TR - HDMI Transmitter Port Protection and Interface Device

ON Semiconductor

📥 Download Datasheet

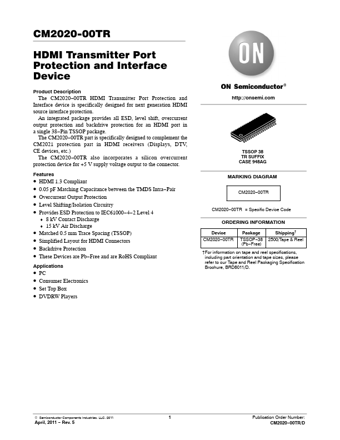

CM2020-00TR Datasheet Preview — Preview of CM2020-00TR PDF

Datasheet Details

Part number	CM2020-00TR
Manufacturer	ON Semiconductor
File Size	324.86 KB
Description	HDMI Transmitter Port Protection and Interface Device
Datasheet	CM2020-00TR-ONSemiconductor.pdf

CM2020-00TR Product details

Description

The CM2020 00TR HDMI Transmitter Port Protection and Interface device is specifically designed for next generation HDMI source interface protection.An integrated package provides all ESD, level shift, overcurrent output protection and backdrive protection for an HDMI port in a single 38 Pin TSSOP package. 00TR part is specifically designed to complement the CM2021 protection part in HDMI receivers (Displays, DTV, CE devices, etc.) The CM2020 00TR also

Features

HDMI 1.3 Compliant.
0.05 pF Matching Capacitance between the TMDS Intra.
Pair.
Overcurrent Output Protection.
Level Shifting/Isolation Circuitry.
Provides ESD Protection to IEC61000.
4.
2 Level 4.
8 kV Contact Discharge.
15 kV Air Discharge.
Matched 0.5 mm Trace Spacing (TSSOP).
Simplified Layout for HDMI Connectors.
Backdrive Protection.
These Devices are Pb.
Free and.
