CM2021-02TR - HDMI Receiver Port Protection/Interface

Description

Device is specifically designed for next generation HDMI Host interface protection.

Pin TSSOP package.

Features

  • HDMI 1.3 Compliant.
  • 0.05 pF Matching Capacitance between the TMDS Intra.
  • Pair.
  • Level Shifting/Isolation Circuitry.
  • Provides ESD Protection to IEC61000.
  • 4.
  • 2 Level 4:  8 kV Contact Discharge  15 kV Air Discharge.
  • Matched 0.5 mm Trace Spacing (TSSOP).
  • Simplified Layout for HDMI Connectors.
  • Backdrive Protection.
  • These Devices are Pb.
  • Free and are RoHS Compliant.

📥 Download Datasheet

Datasheet Details

Part number CM2021-02TR
Manufacturer onsemi
File Size 306.51 KB
Description HDMI Receiver Port Protection/Interface
Datasheet download datasheet CM2021-02TR Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
CM2021 HDMI Receiver Port Protection and Interface Device California Micro Devices
CM2020 HDMI TRANSMITTER PORT PROTECTION AND INTERFACE DEVICE CMD
CM2025 BT Audio Chip C-Media
CM2026 DUAL USB POWER CONTROL SWITCH Champion
CM2026A DUAL USB POWER CONTROL SWITCH Champion

Other Datasheets by onsemi

Part Number Description
CM2020-00TR HDMI Transmitter Port Protection and Interface Device
CM2006 LCD and Camera EMI Filter
CM2009 VGA Port Companion Circuit
CM2030 HDMI Receiver Port Protection and Interface Device
CM2031 HDMI Receiver Port Protection and Interface Device

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

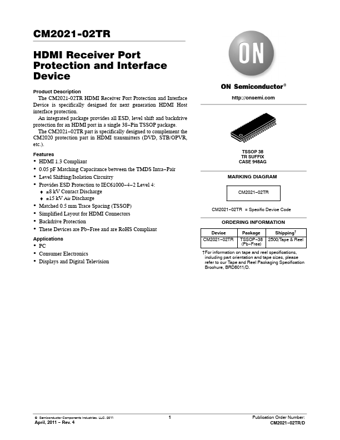

CM2021-02TR HDMI Receiver Port Protection and Interface Device Product Description The CM2021-02TR HDMI Receiver Port Protection and Interface Device is specifically designed for next generation HDMI Host interface protection. An integrated package provides all ESD, level shift and backdrive protection for an HDMI port in a single 38−Pin TSSOP package. The CM2021−02TR part is specifically designed to complement the CM2020 protection part in HDMI transmitters (DVD, STB/OPVR, etc.). Features  HDMI 1.3 Compliant  0.05 pF Matching Capacitance between the TMDS Intra−Pair  Level Shifting/Isolation Circuitry  Provides ESD Protection to IEC61000−4−2 Level 4:  8 kV Contact Discharge  15 kV Air Discharge  Matched 0.
