CM1624 - EMI Filter

ON Semiconductor

📥 Download Datasheet

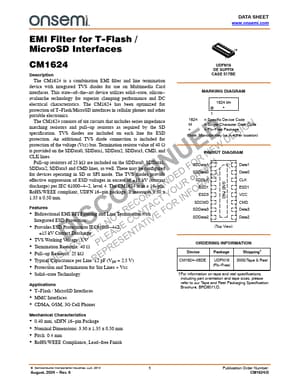

CM1624 Datasheet Preview — Preview of CM1624 PDF

Datasheet Details

Part number	CM1624
Manufacturer	ON Semiconductor
File Size	822.10 KB
Description	EMI Filter
Datasheet	CM1624_ONSemiconductor.pdf

CM1624 Product details

Description

The CM1624 is a combination EMI filter and line termination device with integrated TVS diodes for use on Multimedia Card interfaces.This state of the art device utilizes solid state, silicon avalanche technology for superior clamping performance and DC electrical characteristics. Flash/MicroSD interfaces in cellular phones and other portable electronics.

Features

Bidirectional EMI/RFI Filtering and Line Termination with Integrated ESD Protection.
Provides ESD Protection to IEC61000.
4.
2: 15 kV Contact Discharge.
TVS Working Voltage: 5 V.
Termination Resistors: 40 W.
Pull.
up Resistors: 25 kW.
Typical Capacitance per Line: 12 pF (VIN = 2.5 V).
Protection and Termination for Six Lines + Vcc.
Solid.
state Technology.
