CM1622 - LCD and Camera EMI Filter Array

ON Semiconductor

📥 Download Datasheet

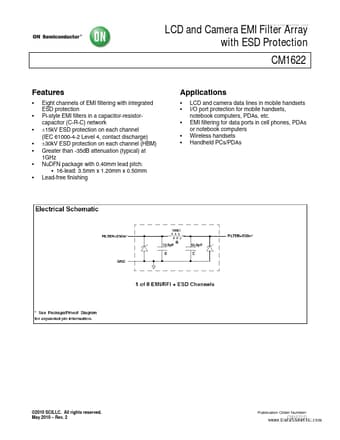

CM1622 Datasheet Preview — Preview of CM1622 PDF

Datasheet Details

Part number	CM1622
Manufacturer	ON Semiconductor
File Size	385.53 KB
Description	LCD and Camera EMI Filter Array
Datasheet	CM1622_ONSemiconductor.pdf

CM1622 Product details

Description

DEVICE PIN(s) 1 2 3 4 5 6 7 8 GND PAD NAME FILTER1 FILTER2 FILTER3 FILTER4 FILTER5 FILTER6 FILTER7 FILTER8 GND DESCRIPTION Filter + ESD Channel 1 Filter + ESD Channel 2 Filter + ESD Channel 3 Filter + ESD Channel 4 Filter + ESD Channel 5 Filter + ESD Channel 6 Filter + ESD Channel 7 Filter + ESD Channel 8 Device Ground DEVICE PIN(s) 16 15 14 13 12 11 10 9 NAME FILTER1 FILTER2 FILTER3 FILTER4 FILTER5 FILTER6 FILTER7 FILTER8 DESCRIPTION Filter + ESD Channel 1 Filter + ESD Channel 2 Filter + ESD C

Features

Eight channels of EMI filtering with integrated ESD protection Pi-style EMI filters in a capacitor-resistorcapacitor (C-R-C) network ±15kV ESD protection on each channel (IEC 61000-4-2 Level 4, contact discharge) ±30kV ESD protection on each channel (HBM) Greater than -35dB attenuation (typical) at 1GHz NuDFN package with 0.40mm lead pitch:.
16-lead: 3.5mm x 1.20mm x 0.50mm Lead-free finishing www. DataSheet4U. com Ap.
