CAT24C164 - 16-kb CMOS Serial EEPROM

Name: CAT24C164
SKU: CAT24C164-1502117

ON Semiconductor

📥 Download Datasheet

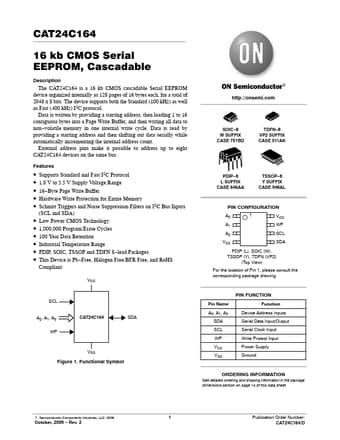

CAT24C164 Datasheet Preview — Preview of CAT24C164 PDF

Datasheet Details

Part number	CAT24C164
Manufacturer	ON Semiconductor
File Size	154.74 KB
Description	16-kb CMOS Serial EEPROM
Datasheet	CAT24C164-ONSemiconductor.pdf

CAT24C164 Product details

Description

The CAT24C164 is a 16 kb CMOS cascadable Serial EEPROM device organized internally as 128 pages of 16 bytes each, for a total of 2048 x 8 bits. volatile memory in one internal write cycle.

Features

Supports Standard and Fast I2C Protocol.
1.8 V to 5.5 V Supply Voltage Range.
16.
Byte Page Write Buffer.
Hardware Write Protection for Entire Memory.
Schmitt Triggers and Noise Suppression Filters on I2C Bus Inputs (SCL and SDA).
Low Power CMOS Technology.
1,000,000 Program/Erase Cycles.
100 Year Data Retention.
Industrial Temperature Range.
PDIP, SOIC, TSSOP and TDFN 8.
lead Packages.
