CAT24C16, CAT24C01 - (CAT24C01 - CAT24C16) Serial EPROM

Name: CAT24C16
SKU: CAT24C16-511814

Catalyst Semiconductor

📥 Download Datasheet

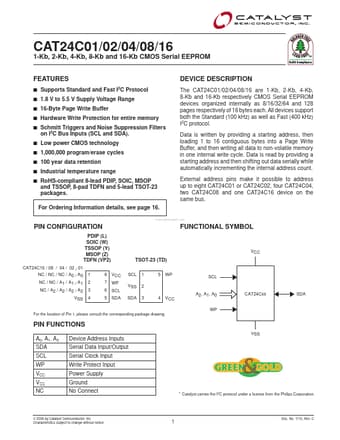

CAT24C16 Datasheet Preview — This datasheet PDF includes multiple part numbers: CAT24C16, CAT24C01. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	CAT24C16, CAT24C01
Manufacturer	Catalyst Semiconductor
File Size	396.21 KB
Description	(CAT24C01 - CAT24C16) Serial EPROM
Datasheet	CAT24C01_CatalystSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: CAT24C16, CAT24C01. Please refer to the document for exact specifications by model.

CAT24C16 Product details

Description

The CAT24C01/02/04/08/16 are 1-Kb, 2-Kb, 4-Kb, 8-Kb and 16-Kb respectively CMOS Serial EEPROM devices organized internally as 8/16/32/64 and 128 pages respectively of 16 bytes each.

Features

Supports Standard and Fast I2C Protocol.
1.8 V to 5.5 V Supply Voltage Range.
16-Byte Page Write Buffer.
Hardware Write Protection for entire memory.
Schmitt Triggers and Noise Suppression Filters 1-Kb, 2-Kb, 4-Kb, 8-Kb and 16-Kb CMOS Serial EEPROM DEVICE.
