BZX79C3V9 - Zener Diodes

Download the BZX79C3V9 datasheet PDF. This datasheet also covers the BZX79C2V4 variant, as both devices belong to the same zener diodes family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (BZX79C2V4-ONSemiconductor.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
BZX79C3V9 VOLTAGE REGULATOR DIODE Seme LAB
BZX79C3V9 SILICON GLASS PASSIVATED 0.5WATT ZENER DIODES CDIL
BZX79C3V9 ZENER DIODES SYNSEMI
BZX79C3V9 Zener Diode Taiwan Semiconductor
BZX79C3V9 Zener Diodes Fairchild Semiconductor

Other Datasheets by onsemi

Part Number Description
BZX79C3V0 Zener Diodes
BZX79C3V3 Zener Diodes
BZX79C3V6 Zener Diodes
BZX79C30 Zener Diodes
BZX79C33 Zener Diodes

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

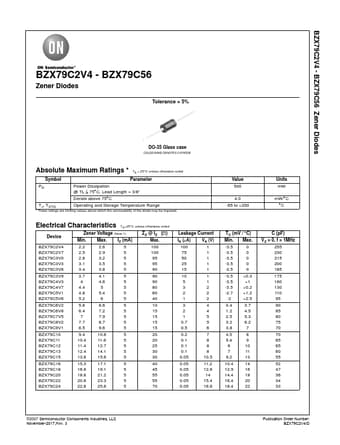

BZX79C2V4 - BZX79C56 Zener Diodes BZX79C2V4 - BZX79C56 Zener Diodes Tolerance = 5% DO-35 Glass case COLOR BAND DENOTES CATHODE Absolute Maximum Ratings * TA = 25°C unless otherwise noted Symbol Parameter PD Power Dissipation @ TL ≤ 75°C, Lead Length = 3/8” Derate above 75°C TJ, TSTG Operating and Storage Temperature Range * These ratings are limiting values above which the serviceability of the diode may be impaired. Value 500 4.0 -65 to +200 Units mW mW/°C °C Electrical Characteristics TA=25°C unless otherwise noted Device BZX79C2V4 BZX79C2V7 BZX79C3V0 BZX79C3V3 BZX79C3V6 Zener Voltage (Note 1) Min. 2.2 2.5 2.8 Max. 2.6 2.9 3.2 IZ (mA) 5 5 5 3.1 3.5 3.4 3.8 5 5 ZZ @ IZ (Ω) Max. 100 100 95 95 90 BZX79C3V9 BZX79C4V3 BZX79C4V7 BZX79C5V1 BZX79C5V6 3.7 4.1 4 4.6 4.4 5 4.
