BTA12-600CW3G - Triacs

ON Semiconductor

📥 Download Datasheet

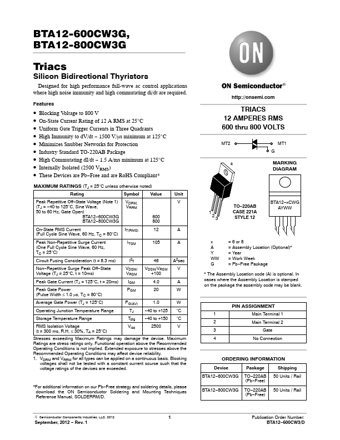

BTA12-600CW3G Datasheet Preview — Preview of BTA12-600CW3G PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	BTA12-600CW3G
Manufacturer	ON Semiconductor
File Size	111.02 KB
Description	Triacs
Datasheet	BTA12-600CW3G_ONSemiconductor.pdf

BTA12-600CW3G Product details

Features

Blocking Voltage to 800 V.
On-State Current Rating of 12 A RMS at 25°C.
Uniform Gate Trigger Currents in Three Quadrants.
High Immunity to dV/dt.
1500 V/ms minimum at 125°C.
Minimizes Snubber Networks for Protection.
Industry Standard TO-220AB Package.
High Commutating dI/dt.
1.5 A/ms minimum at 125°C.
Internally Isolated (2500 VRMS).
These Devices are Pb.
Free and are RoHS Compliant.
