2SC5200 - NPN Transistor

ON Semiconductor

📥 Download Datasheet

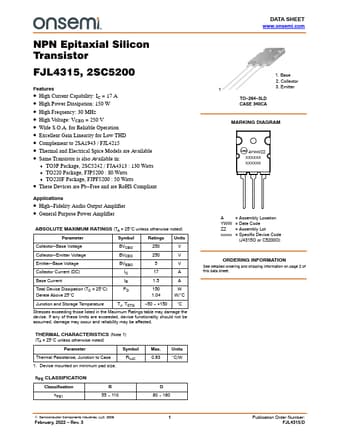

2SC5200 Datasheet Preview — Preview of 2SC5200 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	2SC5200
Manufacturer	ON Semiconductor
File Size	222.52 KB
Description	NPN Transistor
Datasheet	2SC5200-ONSemiconductor.pdf

2SC5200 Product details

Features

High Current Capability: IC = 17 A.
High Power Dissipation: 150 W.
High Frequency: 30 MHz.
High Voltage: VCEO = 250 V.
Wide S. O. A. for Reliable Operation.
Excellent Gain Linearity for Low THD.
Complement to 2SA1943 / FJL4215.
Thermal and Electrical Spice Models are Available.
Same Transistor is also Available in:.
TO3P Package, 2SC5242 / FJA4313 : 130 Watts.
TO220 Package, FJP5200 : 80 Watts.
