2SC5200N - NPN Transistor

Toshiba

📥 Download Datasheet

2SC5200N Datasheet Preview — Preview of 2SC5200N PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	2SC5200N
Manufacturer	Toshiba
File Size	152.70 KB
Description	NPN Transistor
Datasheet	2SC5200N-Toshiba.pdf

2SC5200N Product details

Features

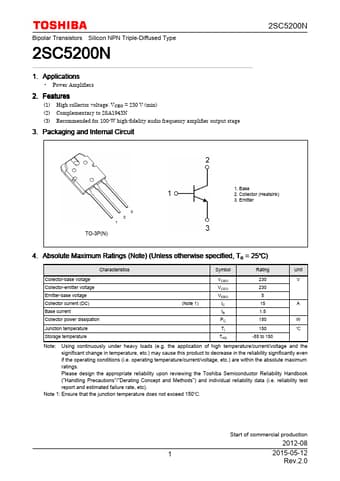

(1) High collector voltage: VCEO = 230 V (min) (2) Complementary to 2SA1943N (3) Recommended for 100-W high-fidelity audio frequency amplifier output stage 3. Packaging and Internal Circuit 2SC5200N 1. Base 2. Collector (Heatsink) 3. Emitter TO-3P(N) 4. Absolute Maximum Ratings (Note) (Unless otherwise specified, Tc = 25) Characteristics Symbol Rating Unit Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current (DC) Base current Collector power dissipati.
