2SA1418 - Bipolar Transistor

Features

  • Adoption of FBET, MBIT Processes.
  • Fast Switching Speed.
  • Ultrasmall Size Making it Easy to Provide High.
  • density, Small.
  • sized Hybrid IC’s.
  • High Breakdown Voltage and Large Current Capacity.
  • This is a Pb.
  • Free Device AD LOT No. CD LOT No.

📥 Download Datasheet

Datasheet Details

Part number 2SA1418
Manufacturer onsemi
File Size 158.52 KB
Description Bipolar Transistor
Datasheet download datasheet 2SA1418 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SA1418 PNP/NPN Epitaxial Planar Silicon Transistors Sanyo Semicon Device
2SA1418 Transistor Kexin
2SA1418 Transistor TY Semiconductor
2SA1411 Transistor ETC
2SA1411 Transistor Kexin

Other Datasheets by onsemi

Part Number Description
2SA1415 PNP / NPN Epitaxial Planar Silicon Transistors
2SA1416 Bipolar Transistor
2SA1417 Bipolar Transistor
2SA1419 Bipolar Transistor
2SA1020 One Watt High Current PNP Transistor

Full PDF Text Transcription

Click to expand full text

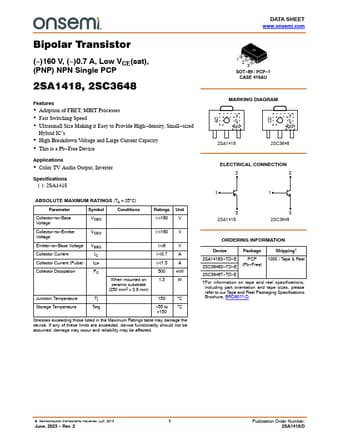

DATA SHEET www.onsemi.com Bipolar Transistor (−)160 V, (−)0.7 A, Low VCE(sat), (PNP) NPN Single PCP 2SA1418, 2SC3648 12 3 SOT−89 / PCP−1 CASE 419AU Features  Adoption of FBET, MBIT Processes  Fast Switching Speed  Ultrasmall Size Making it Easy to Provide High−density, Small−sized Hybrid IC’s  High Breakdown Voltage and Large Current Capacity  This is a Pb−Free Device AD LOT No. CD LOT No. MARKING DIAGRAM RANK 2SA1418 RANK 2SC3648 Applications  Color TV Audio Output, Inverter Specifications ( ): 2SA1418 ABSOLUTE MAXIMUM RATINGS (TA = 25C) Parameter Symbol Conditions Ratings Unit Collector−to−Base Voltage VCBO (−)180 V Collector−to−Emitter Voltage VCEO (−)160 V Emitter−to−Base Voltage VEBO (−)6 V Collector Current IC (−)0.
