2SA1417 - Bipolar Transistor

Product Overview

ON Semiconductor

Part number	2SA1417
Manufacturer	ON Semiconductor
File Size	222.04 KB
Description	Bipolar Transistor
Datasheet	2SA1417 Datasheet

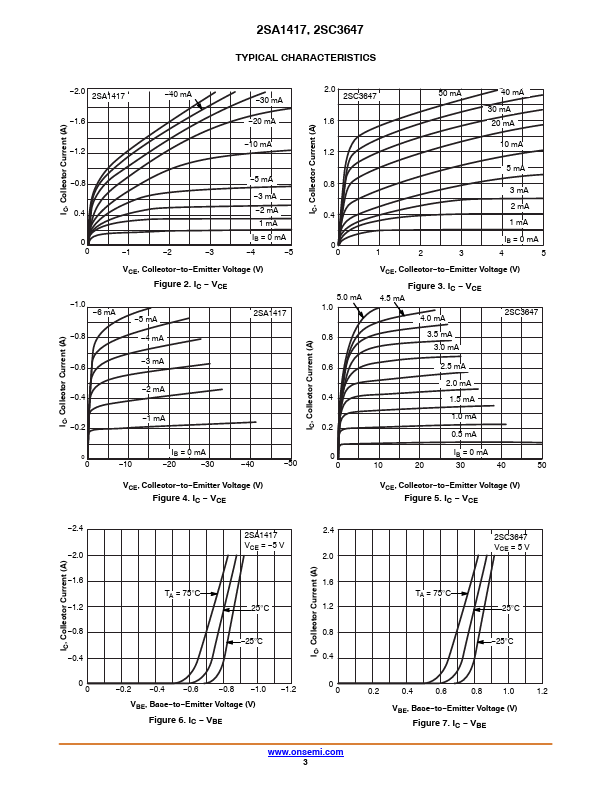

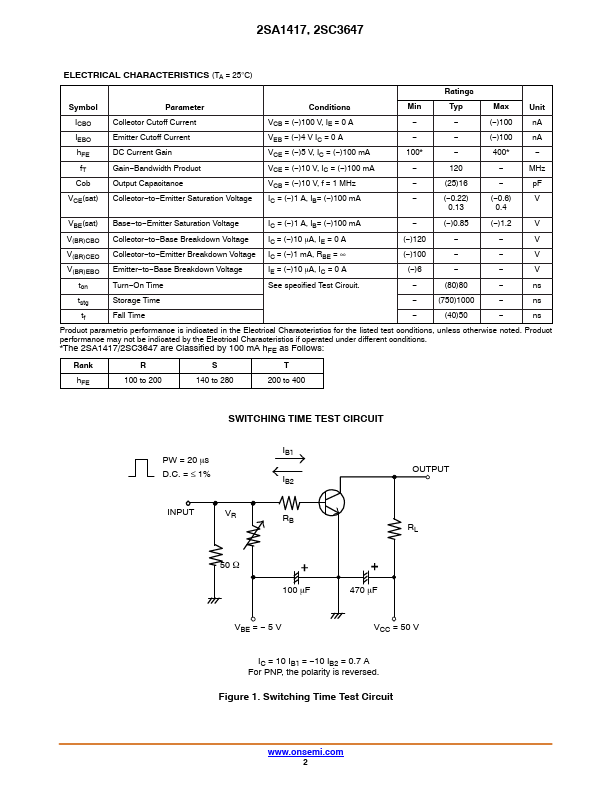

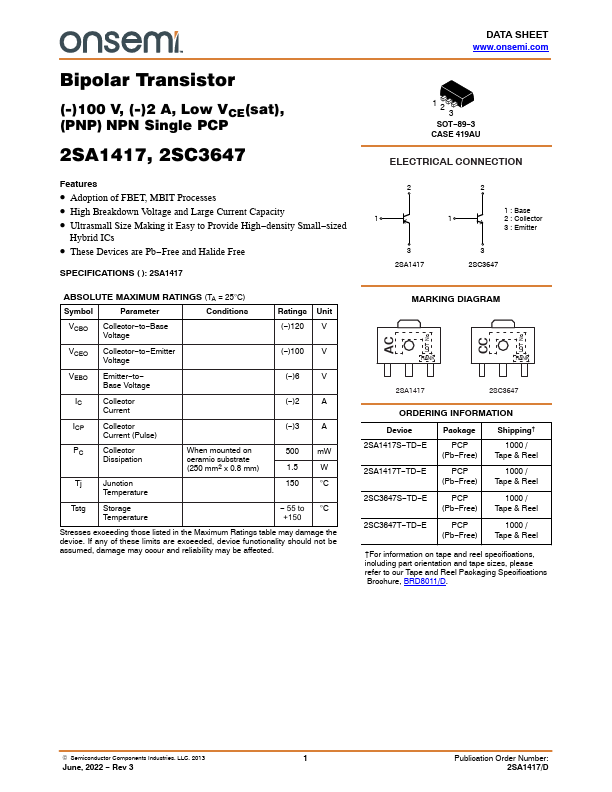

Additional preview pages of the 2SA1417 datasheet.

Adoption of FBET, MBIT processes.
High breakdown voltage and large current capacity.
Fast switching speed.
Ultrasmall size making it easy to provide high-density small-sized hybrid ICs Speciﬁcations ( ) : 2SA1417 Absolute Maximum Ratings at Ta=25°C Parameter Symbol Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) VCBO VCEO VEBO IC ICP Collector Dissipation PC Junction Temperatur.
